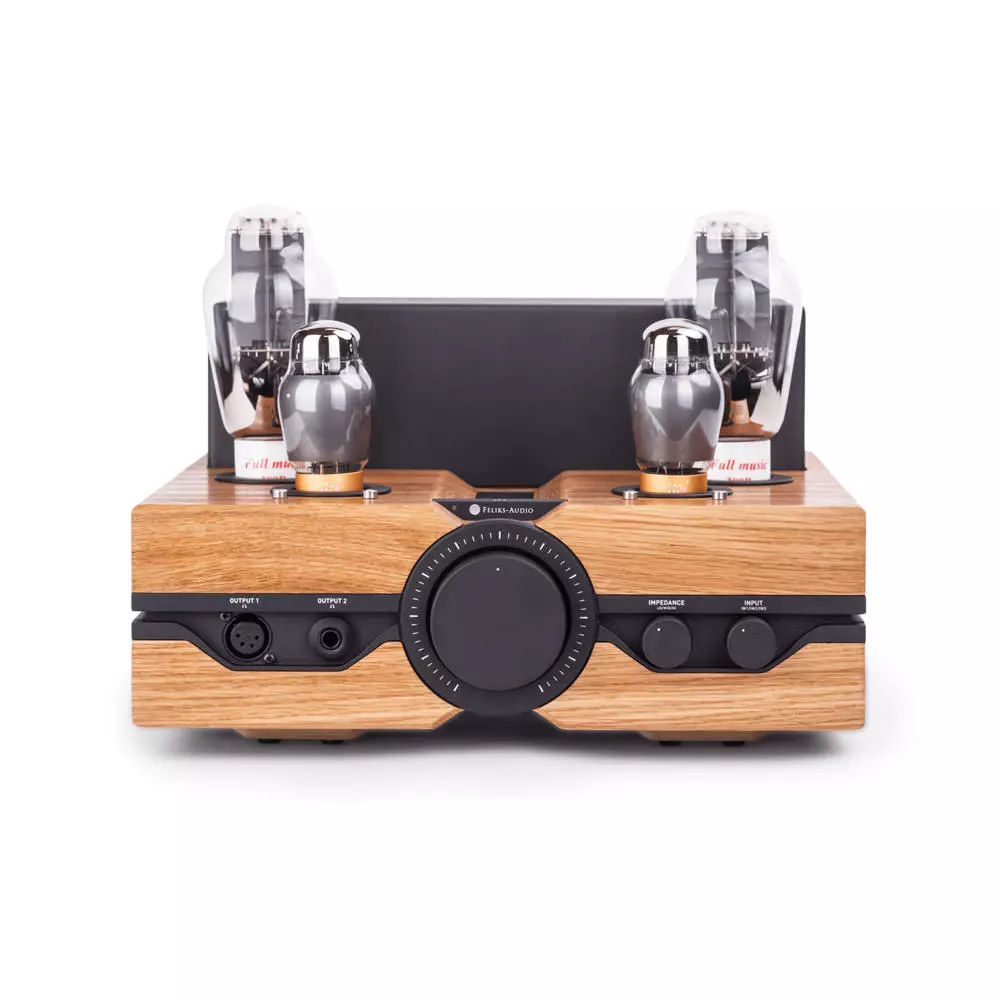

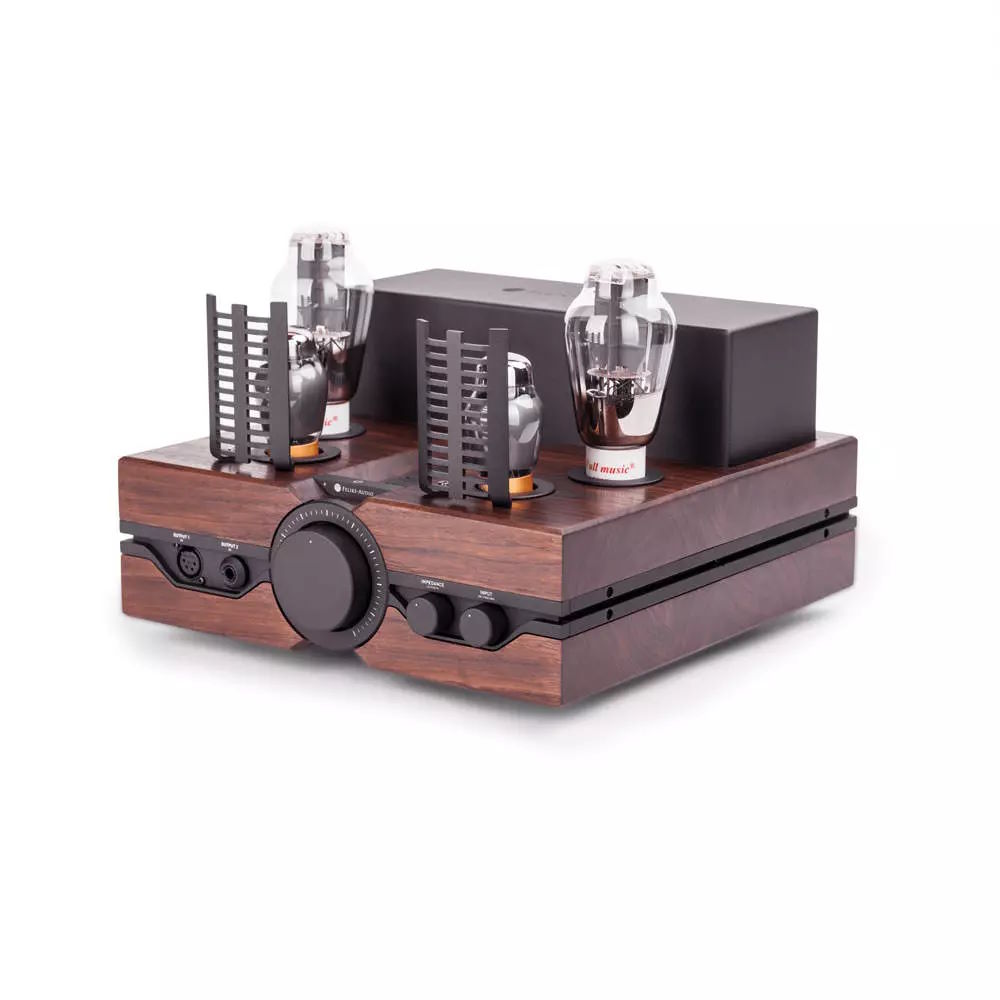

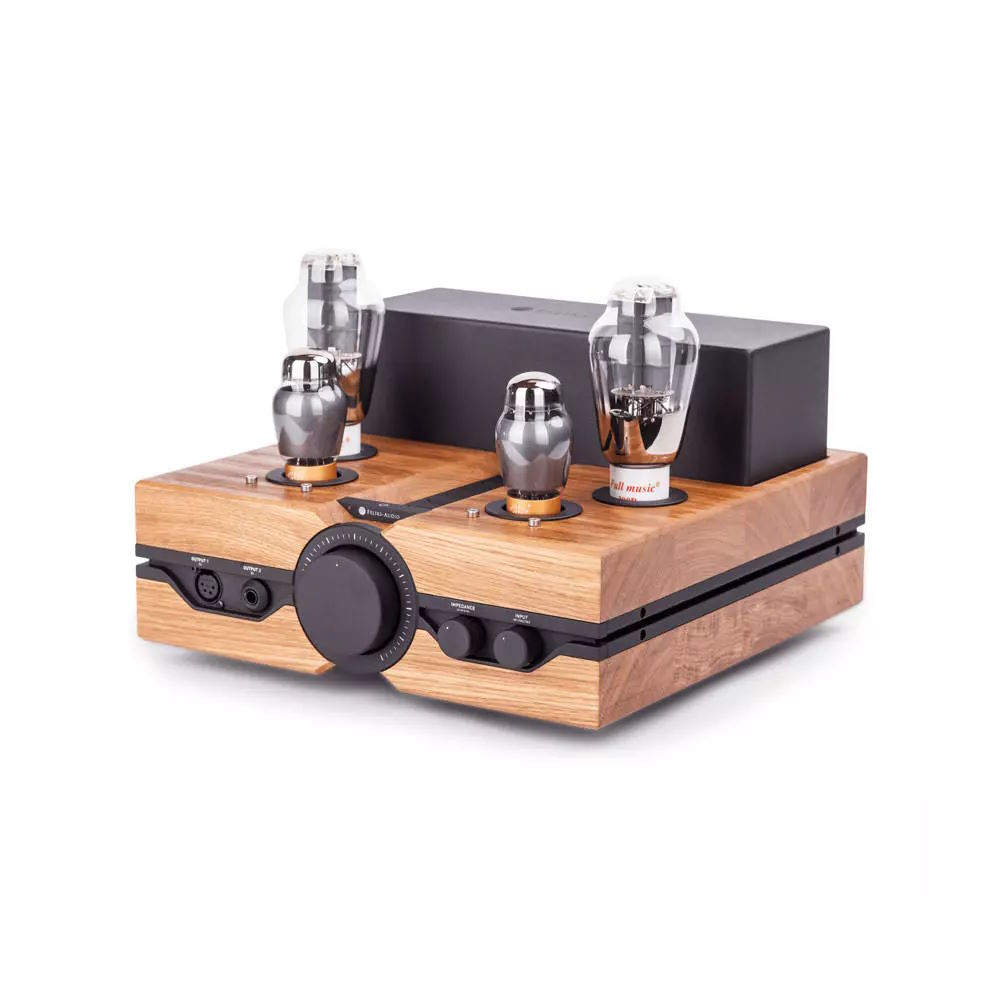

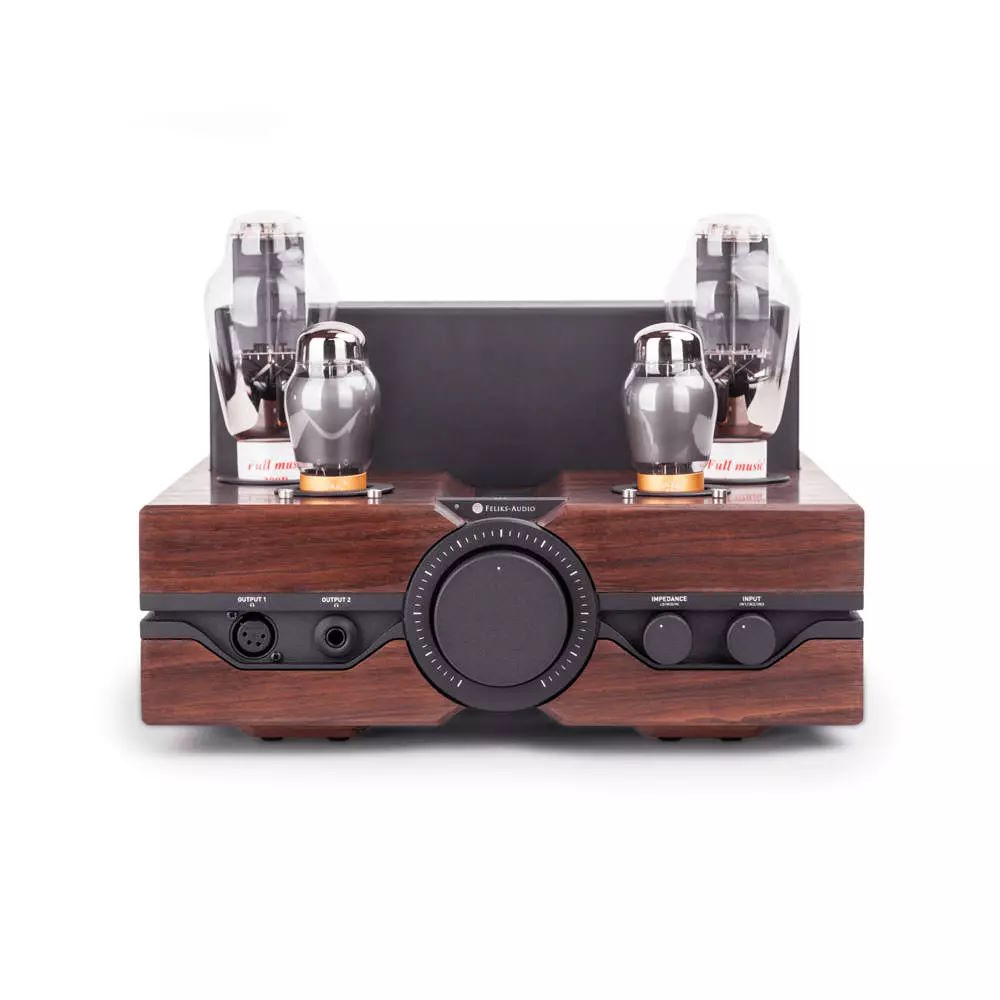

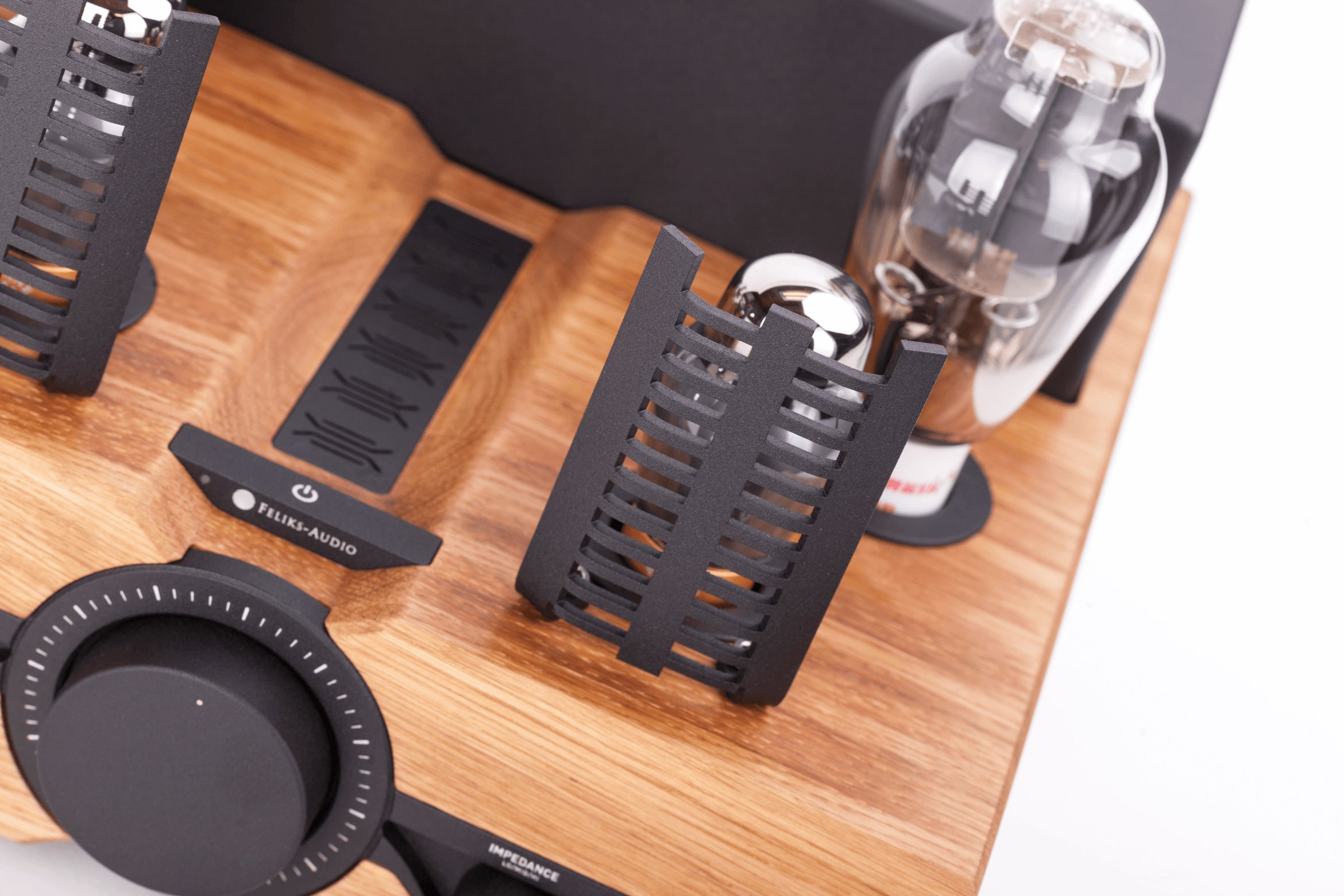

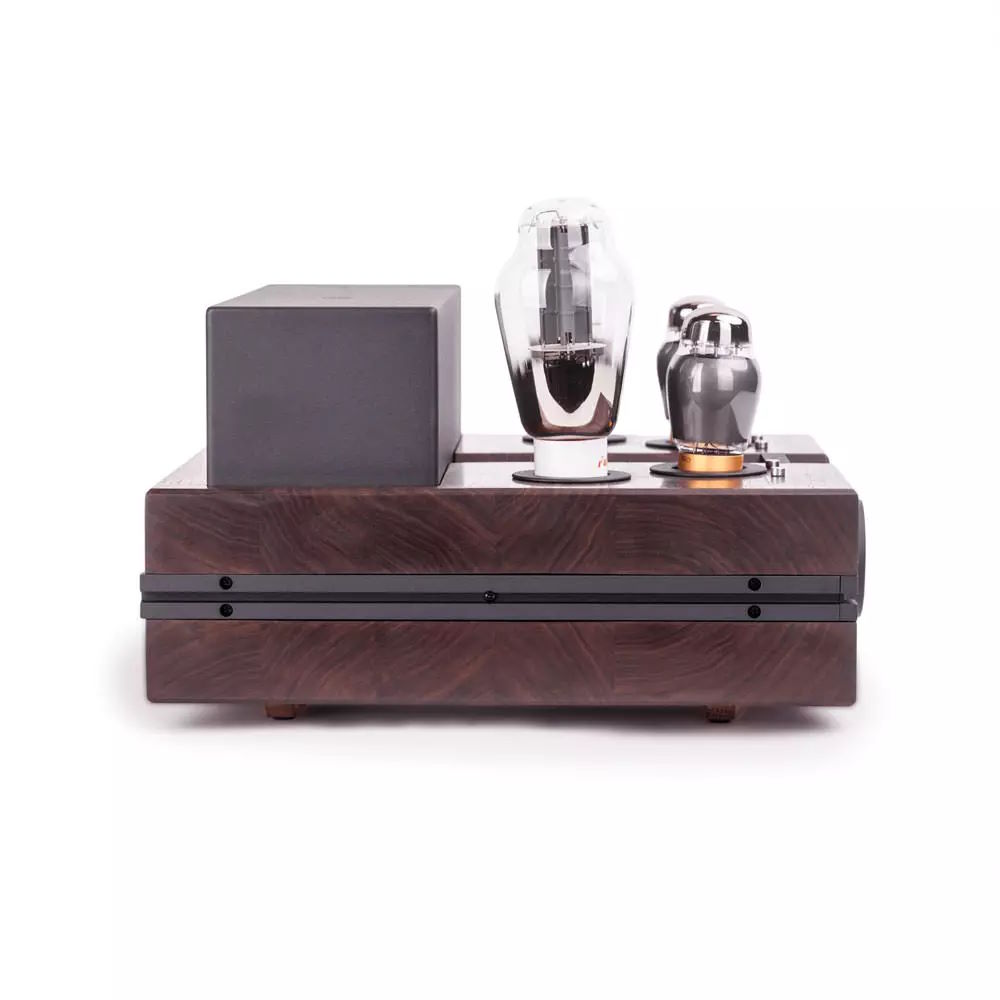

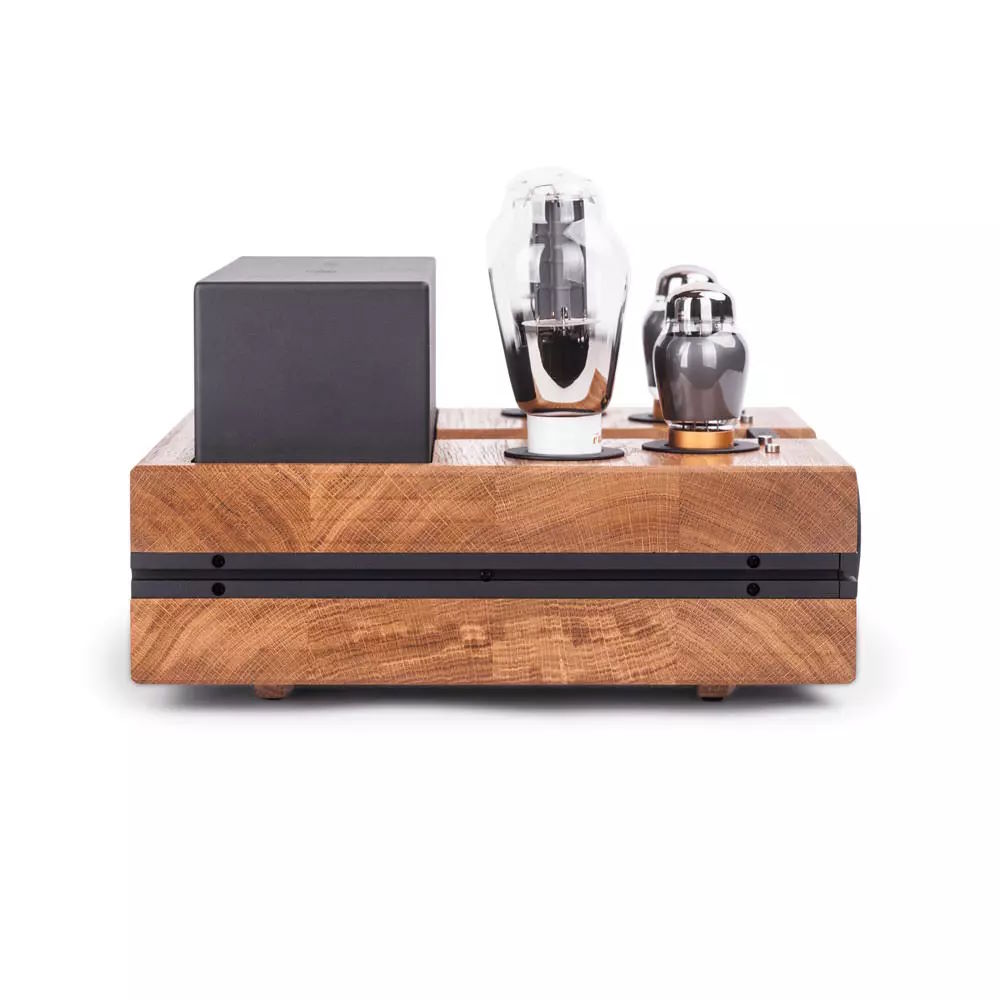

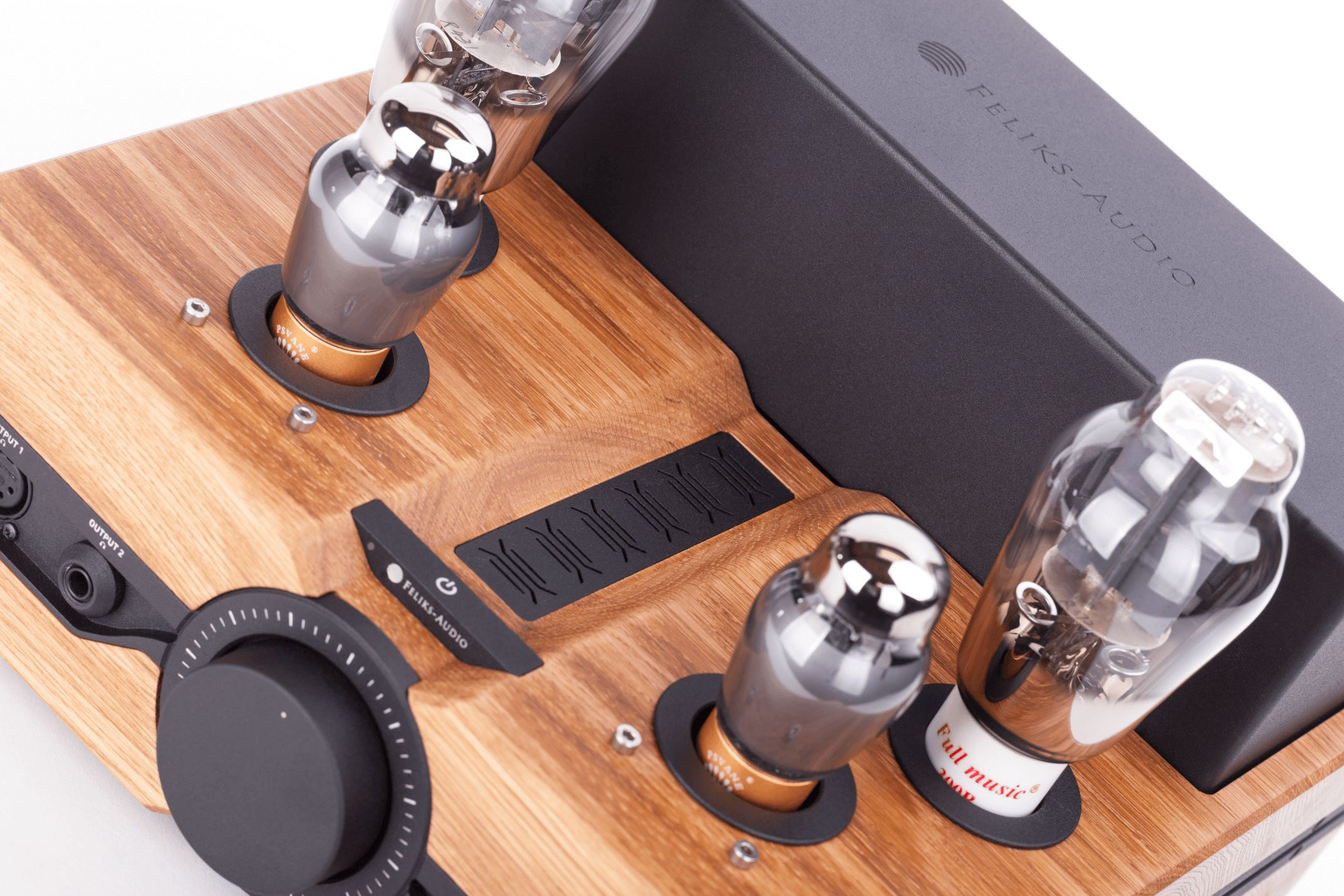

Feliks Audio Envy
Class A Single-ended transformer coupled, balanced amplifier, powered by the legendary 300B tubes
* Developed to drive even the most demanding headphones with up to 8 Watts of power
* Exclusive finish and extensive customization options
* Multiple inputs and outputs for maximum functionality
* Balanced input / output XLR connections
Standard Edition includes :
* 300B power tubes
* Premium copper signal wiring
Performance Edition includes :
* Full Music 300B power tubes
* UPOCC (single crystal copper) signal wiring
TECHNICAL SPECIFICATION
Class A Single-ended transformer coupled amplifier

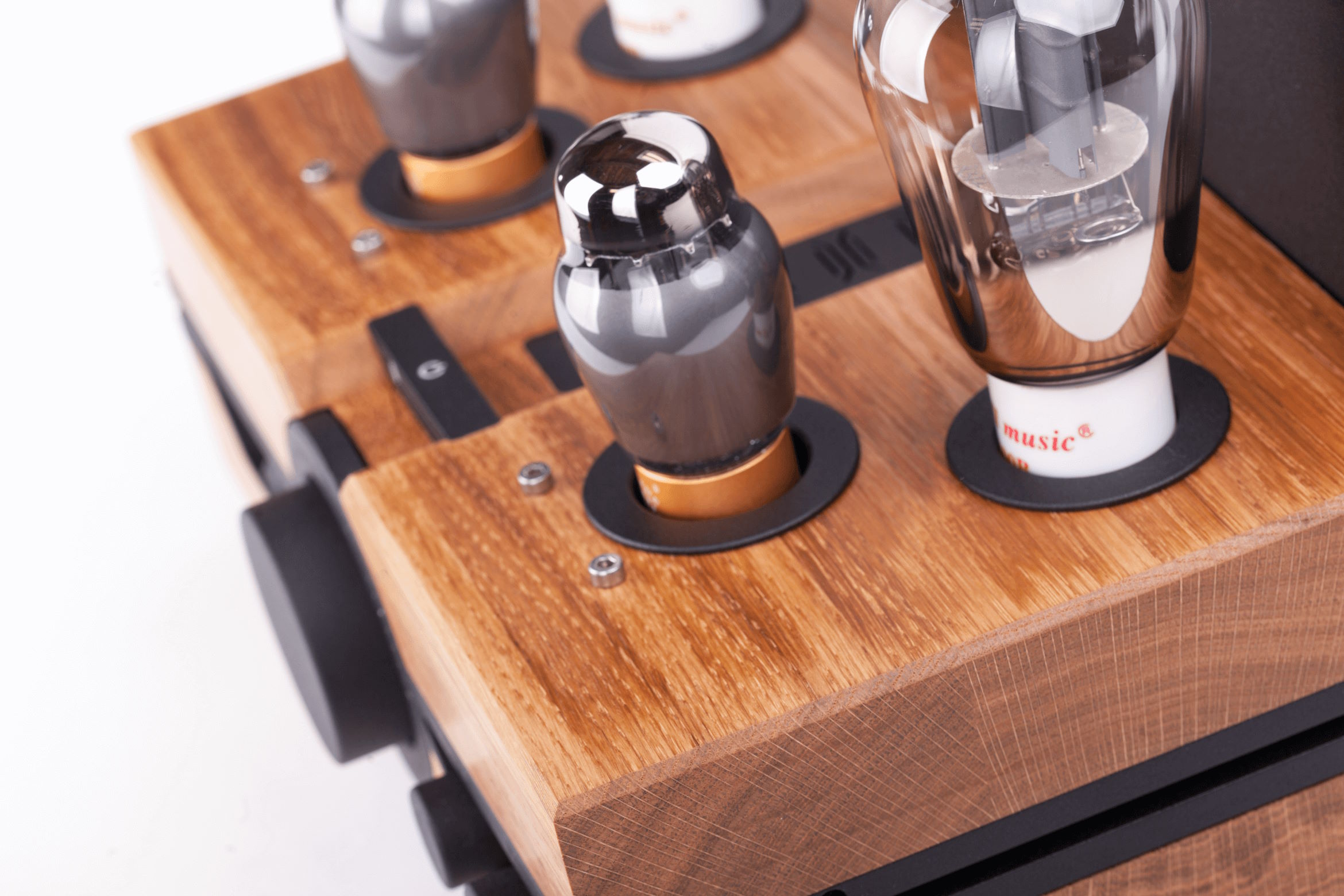

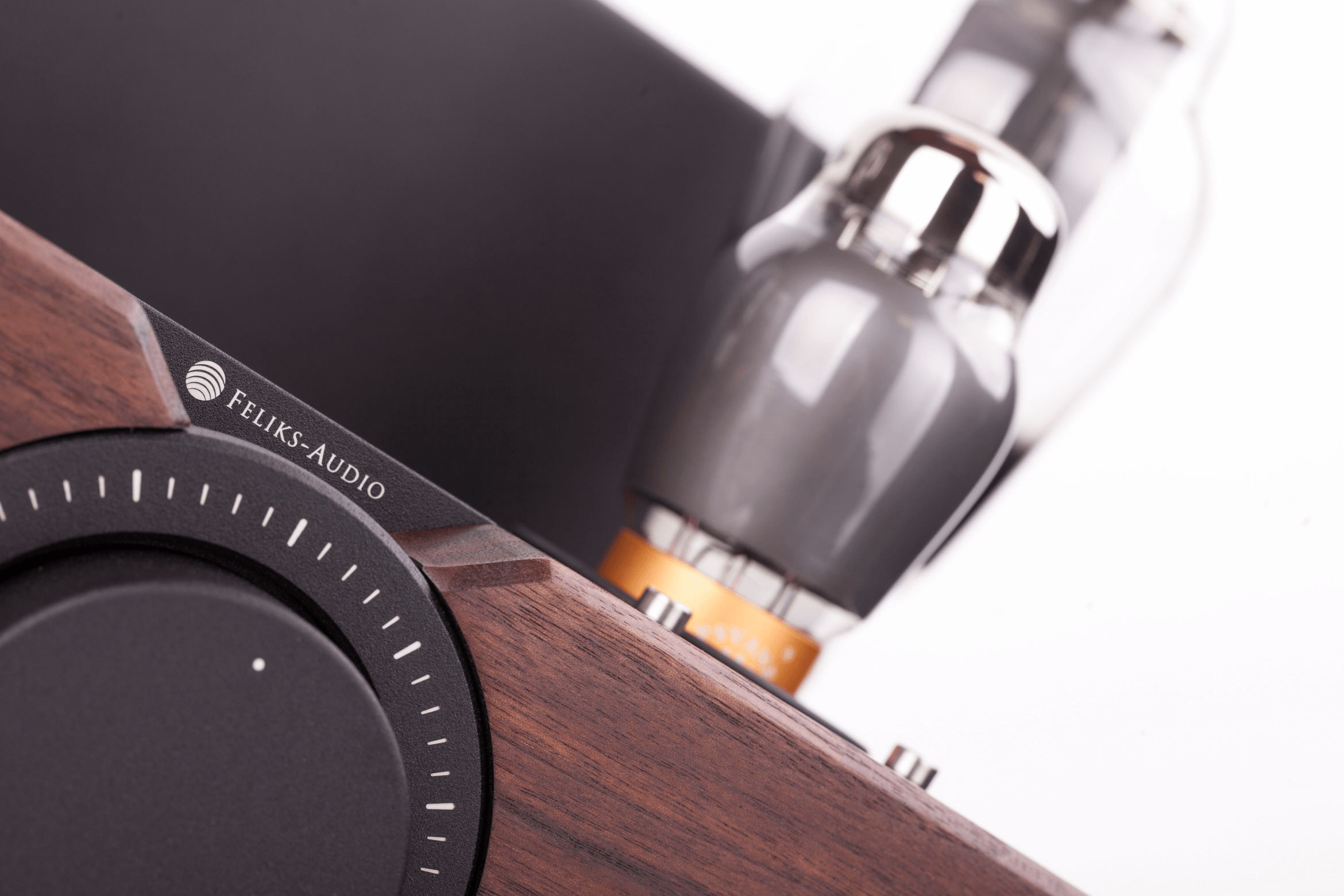

* Power tubes: 300B
* Driver tubes: PsVane CV-181 mk2 (6SN7)

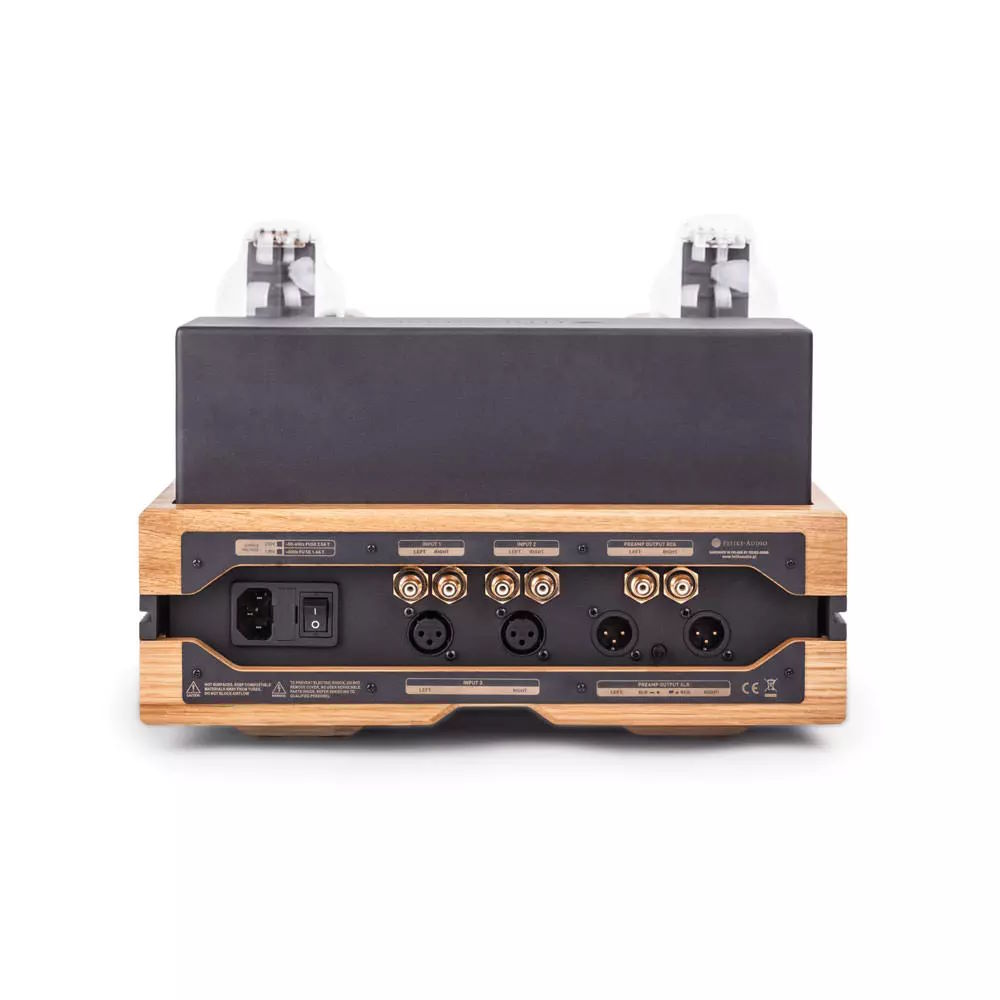

Inputs
* 2x unbalanced RCA inputs (IN1, IN2)
* 1x balanced XLR input (IN3)
* Input sensitivity 1V RMS
* Input impedance:
– For IN1 i IN2 (RCA) 100kΩ
– For IN3 (XLR) 10kΩ
Outputs
* 1x pair of pre-amplifier output as RCA
* 1x pair of pre-amplifier output as XLR
Maximum voltage on the above outputs is 5V (RMS) at output impedance of 600Ω and THD<0,5%

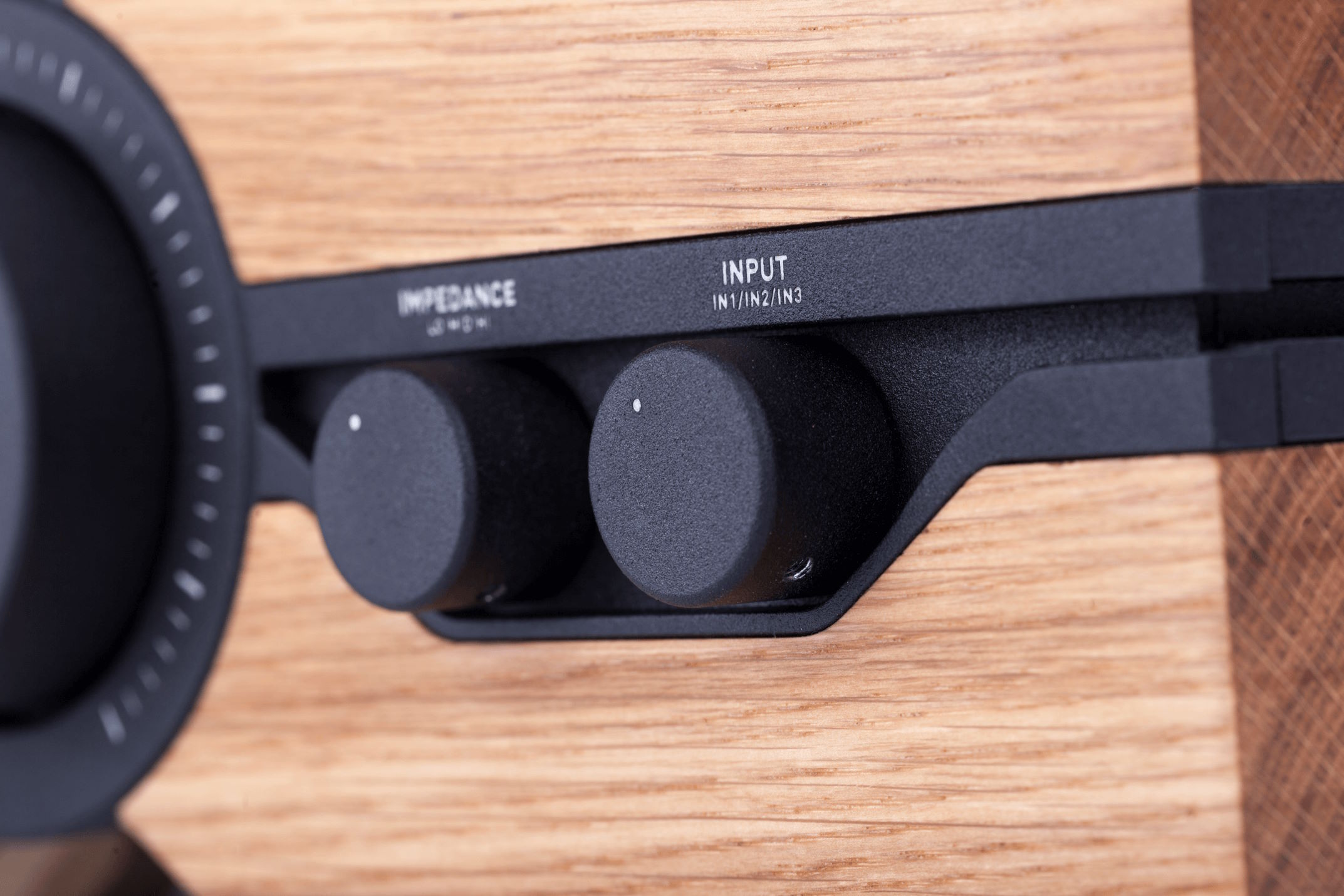

Impedance selector guidance:
– LO – up to 60Ω
– MID – up to 300Ω
– HI – up to 600Ω–mnh
Amplifier’s impedance:
– LO at 32Ω load is 3,8Ω
– MID at 100Ω load is 8,8Ω
– HI at 600Ω is 20Ω
Output powered measured at MID impedance setting at load of 16Ω is 5W with THD ⩽1% (maximum 8W at THD >5%)
Frequency response:
– 8Hz÷100kHz ±3dB
– 18Hz÷40kHz ±1dB

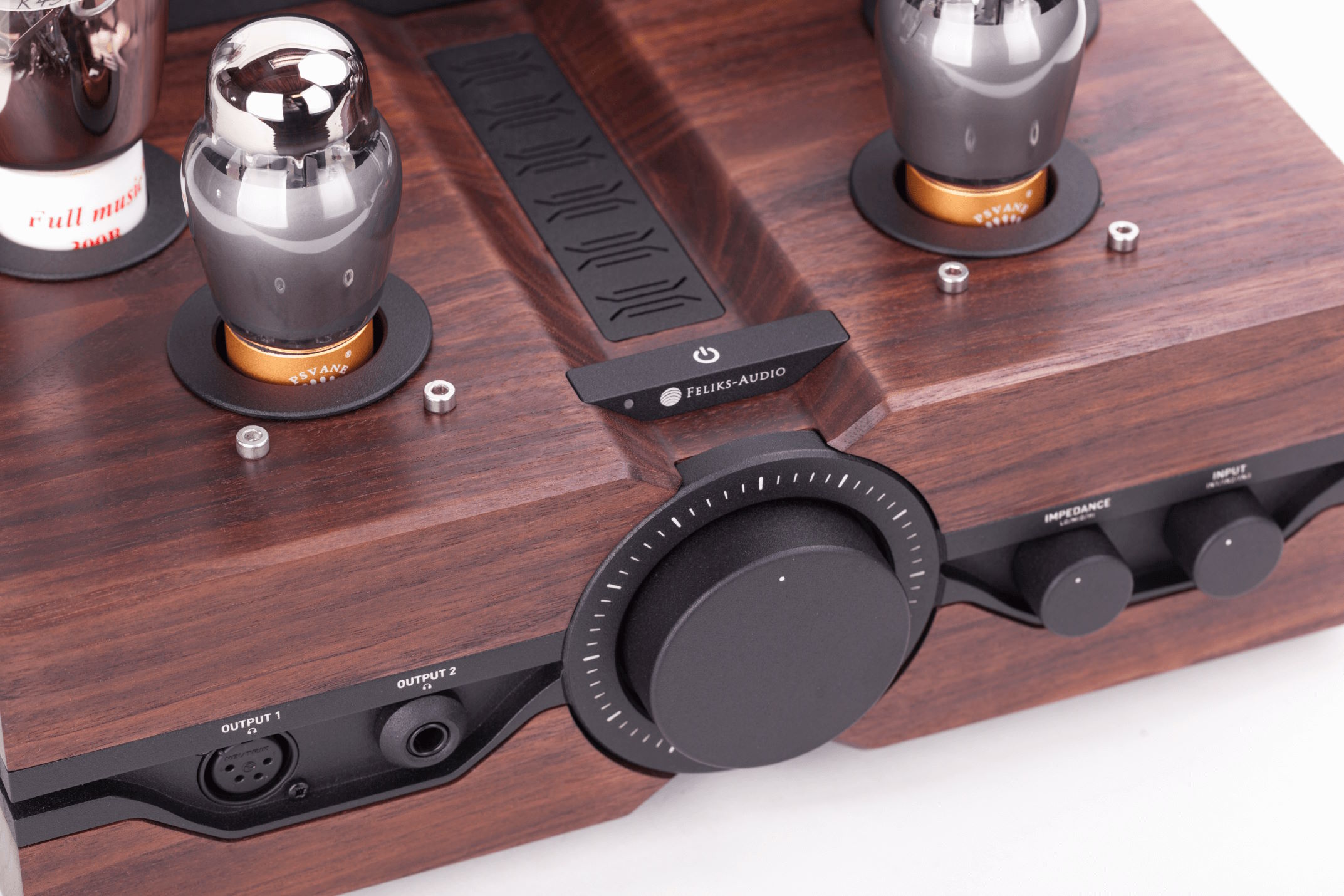

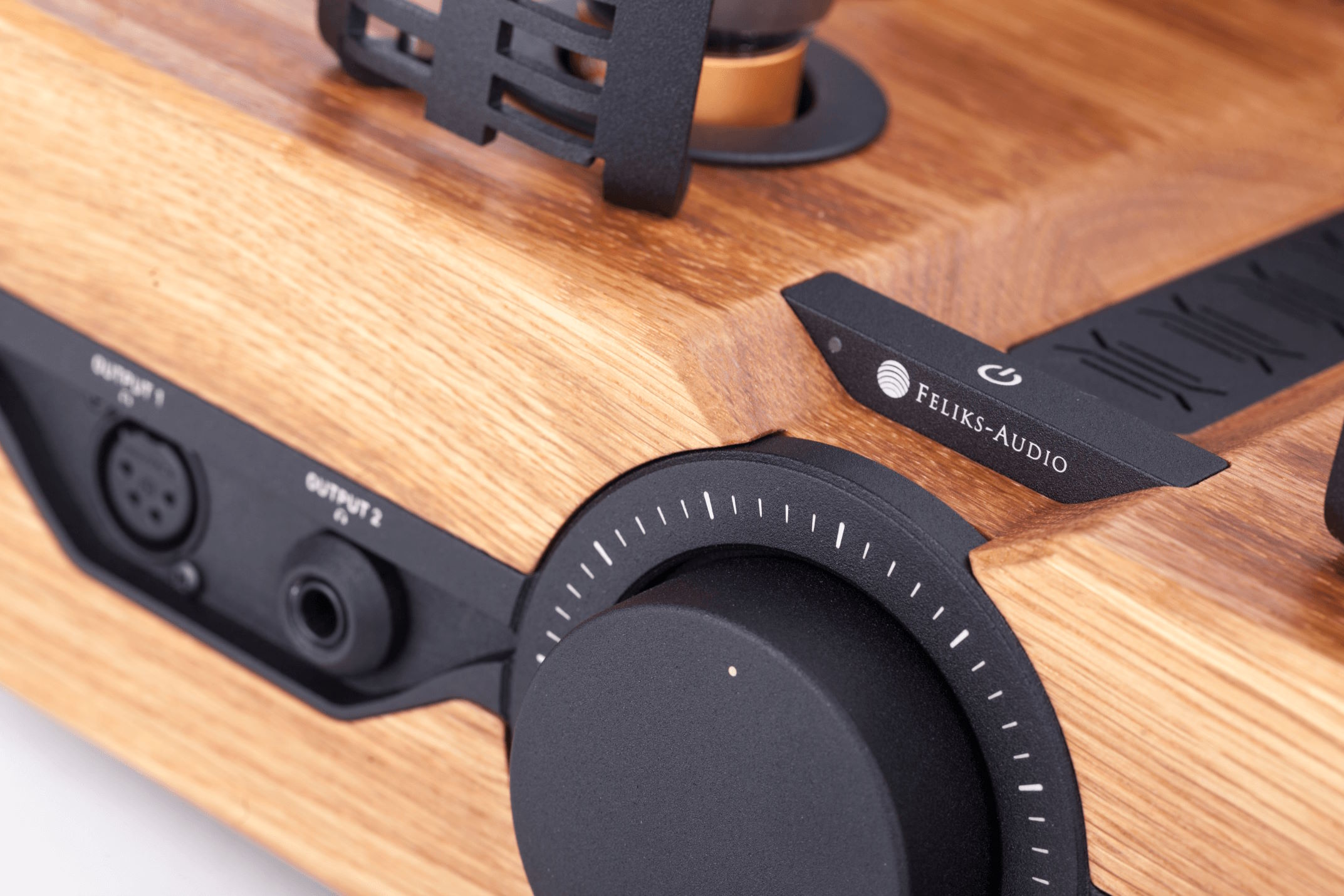

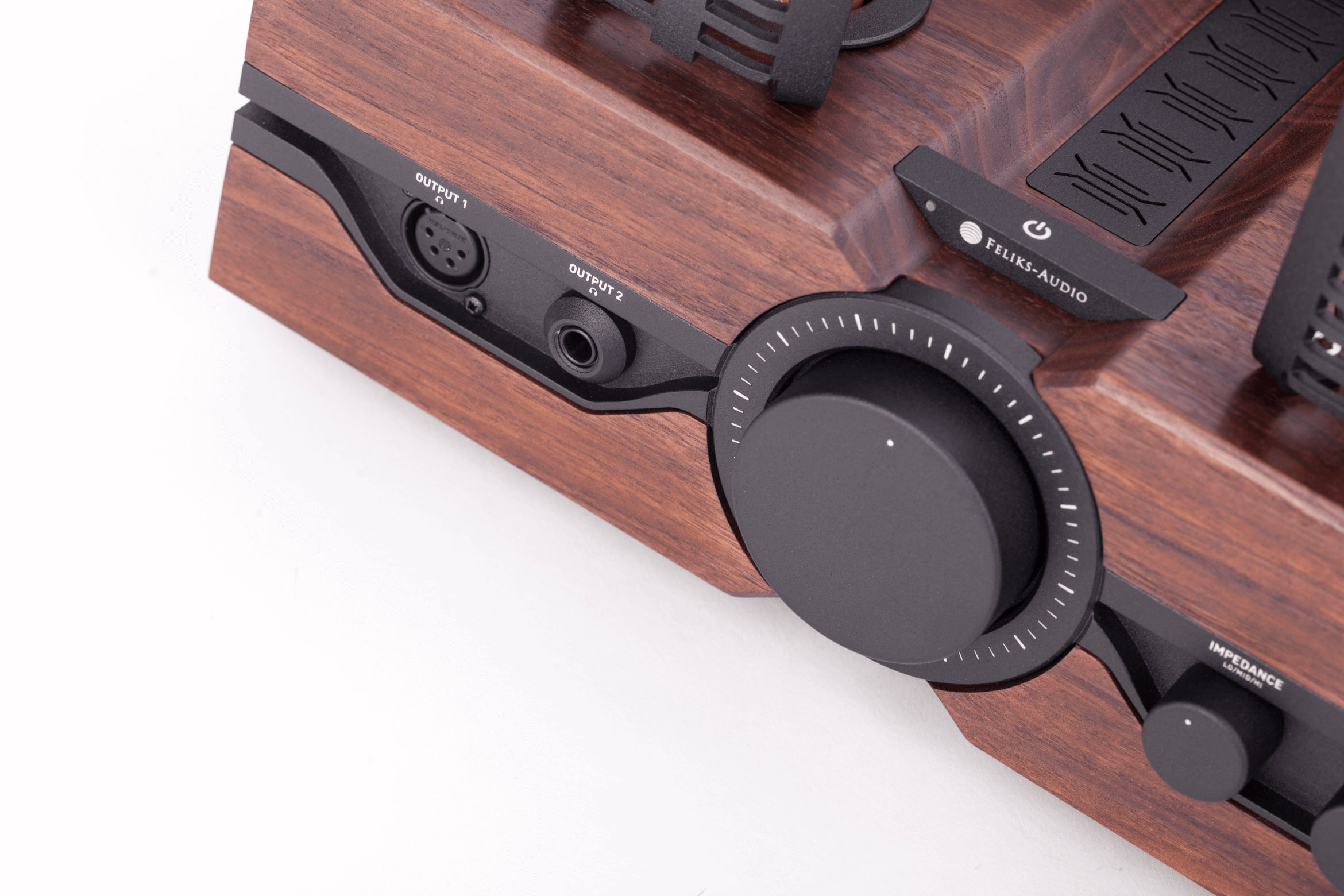

Headphone outputs:
6.3mm and XLR
AC voltage 50/60Hz:
– 230V version (±5%)
– 115V version (±5%)
Power consumption: 110VA
Weight: 15,1kg (without packaging)
Dimensions:
– 35x33x18,5cm (LxWxH) – without tubes
– 35x33x24,5cm (LxWxH) – with tubes
BOX CONTENT
* Matched pair of driver tubes CV-181(6SN7)
* Matched pair of power tubes 300B
* AC cord
* User Manual
* Warranty Card
