Kinki Studio - EX Series M1

33,990 SEK
Add to list of favorites

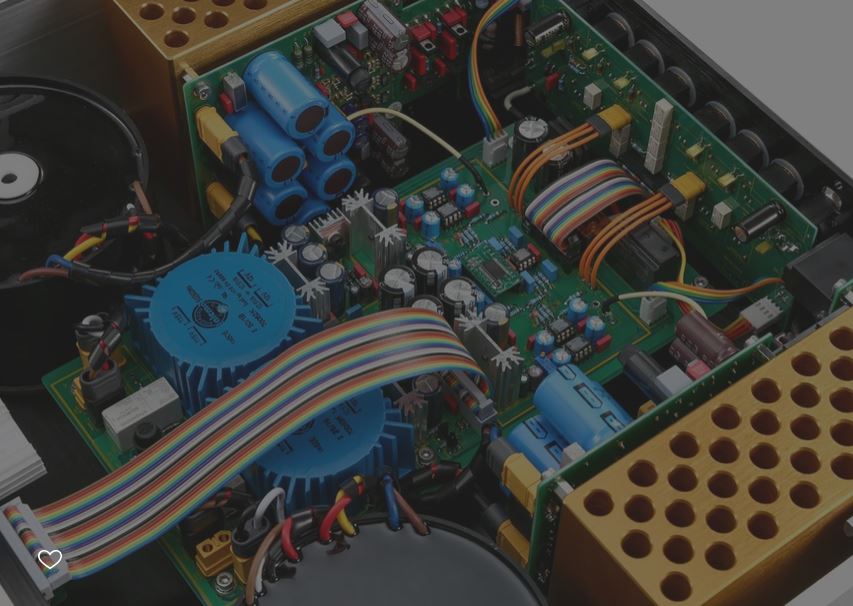

The EX Series M1 is Kinki Studio's entry-level integrated amplifier model, built like a "tank" (in a positive way...). Solid aluminum chassis and built with quality components such as ALPS, WIMA and Neutrik. The EX Series M1 is an audiophile's budget dream with a neutral yet very musical sound character. Well worth a test listen! EX Series M1 - In Brief: * Output power : 2x215W (8Ω), 400W (4Ω), when both channels are powered * Damping factor: 2000 * Inputs: RCA x 3, XLR x 1 Supplied with: * Remote control "The EX-M1 Integrated Amplifier is filled with premium parts choices including a microprocessor-controlled JRC MUSES 72320 volume control, true dual mono design, EXICON MOSFETs, 0.2µm gold-plated printed circuit boards, and a pair of 400VA encapsulated transformers. In an interesting twist on form and function, those gold anodized holed heat sinks and matching binding post terminal mounts are also directly attached to each amplifier circuit, one for each channel. [...] The Kinki Studio EX-M1 Integrated Amplifier offers performance that belies its price—in a big way. When taken as a whole,—build quality, power, and sound quality—the EX-M1 represents outstanding value, something I don’t come across every day. If you value an integrated amplifier that offers superb clarity, control, and a rich but not overly ripe sonic palette, the numbers for the Kinki Studio EX-M1 add up to an amplifier worth considering for a serious relationship." Twittering machines (May 2023) "Though the Kinki unmistakably belonged to our generic Swiss school, it included that other Swiss, subtle yet distinctive, Nagra aroma. It derives from their signature obsession with tubes even though in much of their recent gear, they don't use valves to get there. Without impact on the noise floor to maintain superb magnification powers, it injects a whiff of textural extra and transient ease. I needn't spell out what that says about the M1's sell price." 6Moons (July 2018) "Not only Kinki Studio EX-M1 proved to be a fantastic product and nothing less, but it also easily and quickly exceeded this reporter’s expectations by proverbial mile. Early on this machine seemed to be too good to be true, but past several weeks spent with it all I can say now is that I simply couldn’t find any catch. Not even one. Kinki Studio EX-M1 is very nicely made, performs outstandingly well, works with no issues, is visually appealing and refined in general. Put shortly, Liu has every right to be proud of this deck’s Chinese roots, whereas yours truly considers himself as lucky to be now familiar with it. [...] Once all its virtues and very much shocking price are taken into account, not to ask for an invoice would be not a mistake but a crime. That’s why Kinki Studio EX-M1 isn’t going anywhere and that’s the best award yours truly can think of at the moment." HiFi Knights (October 2018)
Read more...
  • Secure payment by card through Klarna (outside of Sweden we use PayPal)
  • E-mail us, we reply as swiftly as we can!

    Description

    Article no.: KINKISTUDIO_EX_M1

    The Kinki Studio - EX-M1

    The EX Series is tuned to reproduce sound quality with balance mid and smooth extension in both ends, high and low extension. The EX-M1 is fully modular, a dual mono design in a single chassis. Rich in tonal quality, details, dynamic, and high resolution. Silky smooth volume control thanks to the MUSES volume control, of which known for its precise and accurate volume adjustment with precision matched resistors. JRC MUSES 72320 VOL CONTROL Most amplifiers use a potentiometer for volume control. EX-M1 uses an advanced microprocessor-controlled, JRC MUSES72320 2-channel electronic volume, which is optimized for high-end audio and professional audio applications with advanced circuitry and layout. The MUSES72320 performs low noise and low distortion characteristics and with resistance ladder circuit. COST-NO-OBJECT The EX-M1 uses extremely high cost 0.2µm gold-plated printed circuit board (PCB). From the perspective of PCBs, it is clear that the designer is well aware of the limitations on the fine contact area of the general circuit board, specifically increasing the soldered area at each solder joint and adding as much shielding as possible. POWER STAGE The power amplification circuitry are mounted directly on a large customs made, gold anodized heat sink. The power stage equipped with two pairs of power EXICON MOSFETs, driven in Class AB. Two identical power stage modules are arranged on the left and right sides of the chassis, deliver impeccable power for the two channels: 215 watts into 8 ohms, 400 watts into 4 ohms. HIGH DAMPING FACTOR High damping factor unleash the full potential of the sonic performance of the loudspeakers. EX-M1 employes high power rail supplies, delivering fast and high recovery DC supply to the power stage. The ultra high slew rate and DC-coupled (no capacitors in the signal path), yielded exceptionally acoustic excellent - neutral, transparency, details, dynamic and ultra fast transient response. 215 Watts RMS into 8Ω EX-M1 is one of the rare Integrated Amplifier that is able to provide such a good driving capability in its price range. 215W (8Ω), both channel driven, can literally drive anything you throw at it. SOUND CHARACTERISTIC Neutrality and musicality were the goals to achieve. Rich tonal quality, vivid sound imaging, details, high resolution and dynamic. The choice of the components, design, and tuning does just that. It is the Kinki Studio gears' sound signature. Specification Parameters * Frequency Response: 10-150kHz (±3dB) * THDN: 0.0232%; 0.006% (A-Weighted) * S/N Ratio: >103dB * Output Power: 215W (8Ω), 400W (4Ω), Both channels driven * Damping Factor: 2000 * Gain: Normal Gain 26 dB * Max Output Voltage: 55VAC * AC Power: 110/240VAC, 50/60Hz (Factory configure) Input / Output * Input Sensitivity: 2.25Vrms - 3.6Vrms * Input Impedance: 50kΩ * Input Connector: RCA x 3, XLR x 1 * Output: Speaker Binding Post 4mm L/R Channel Dimension & Weight * Dimensions (mm): 430W x 125H x 370D * Weight: 25KG
