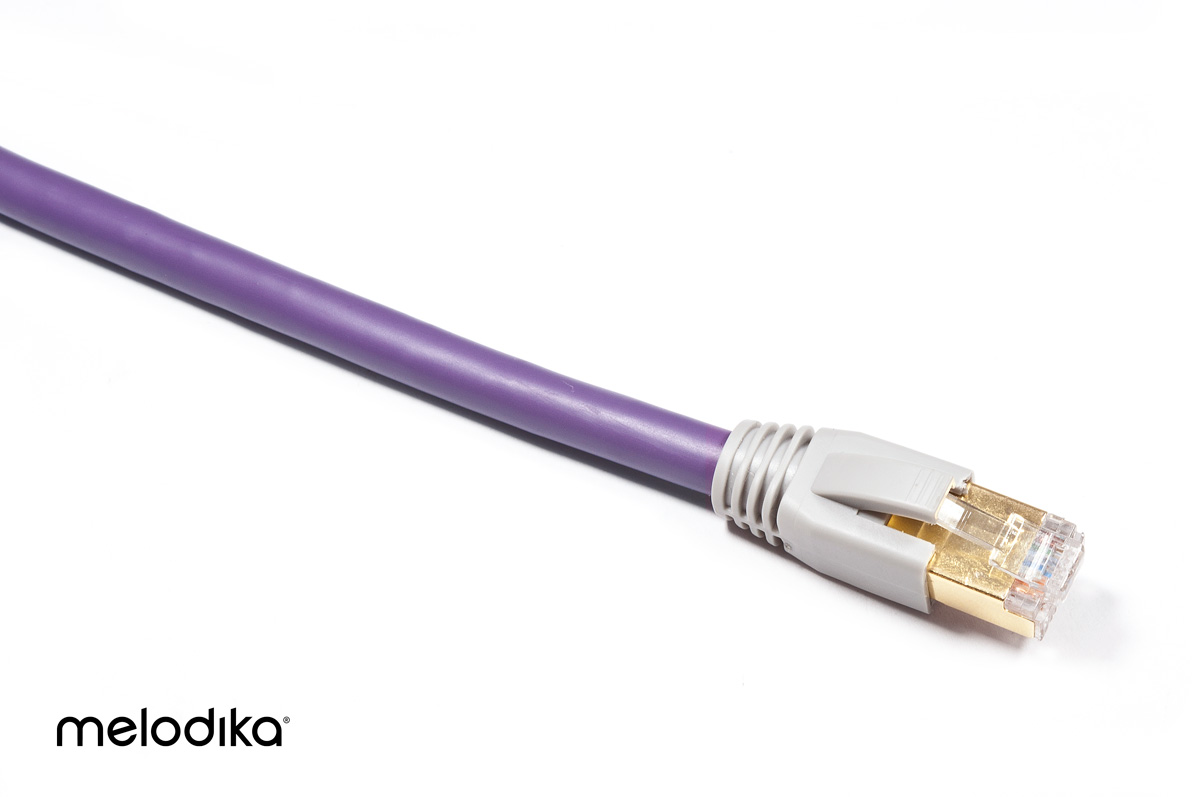

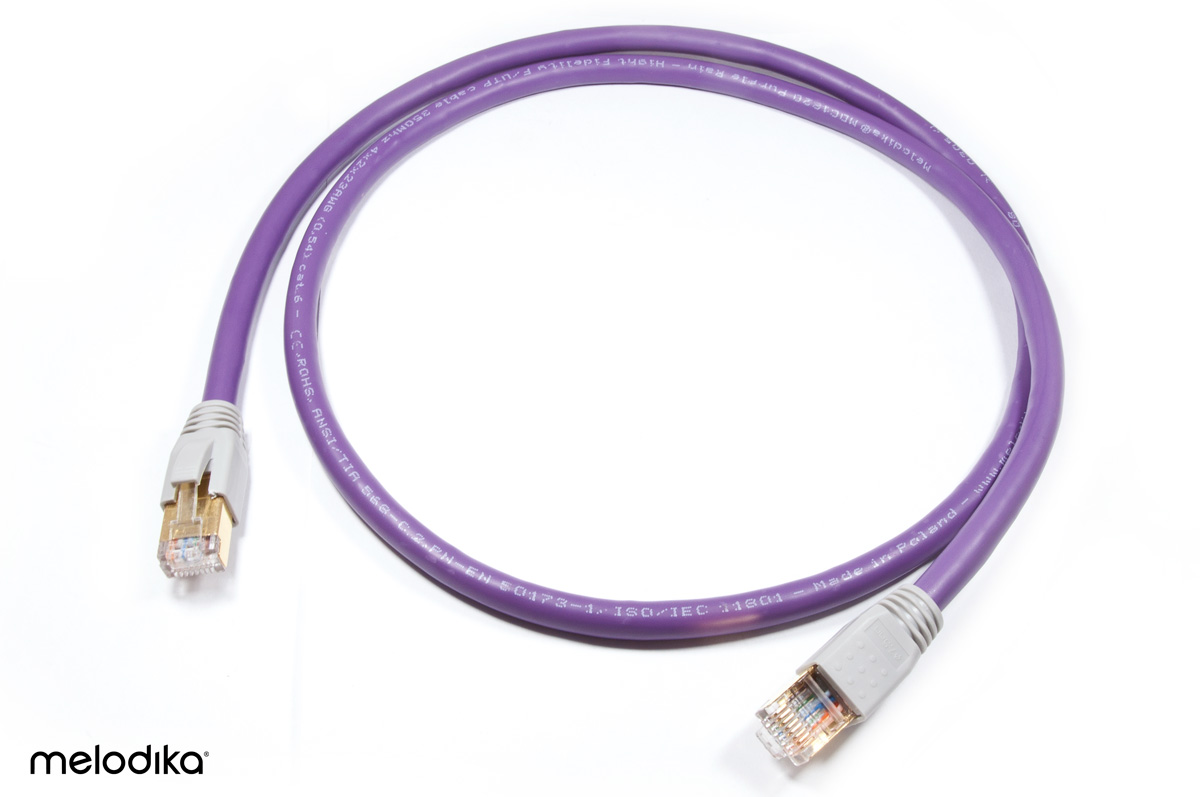

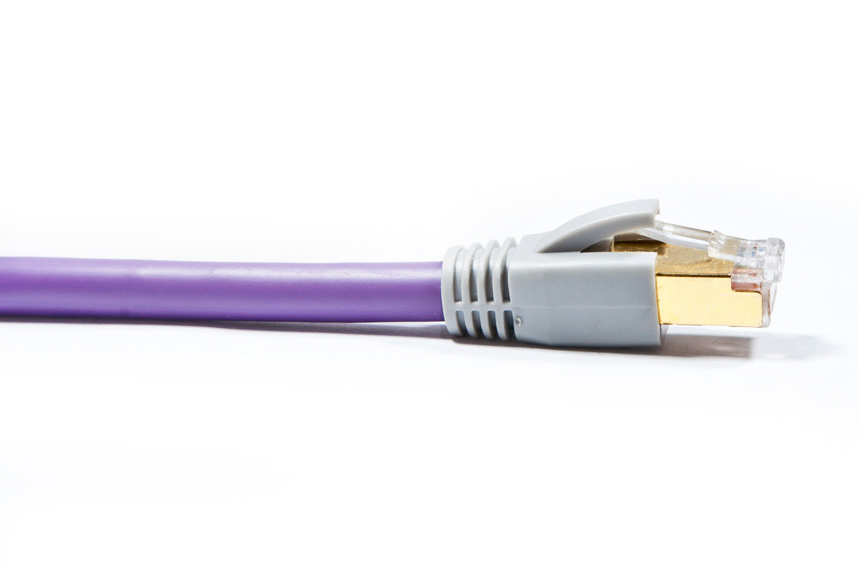

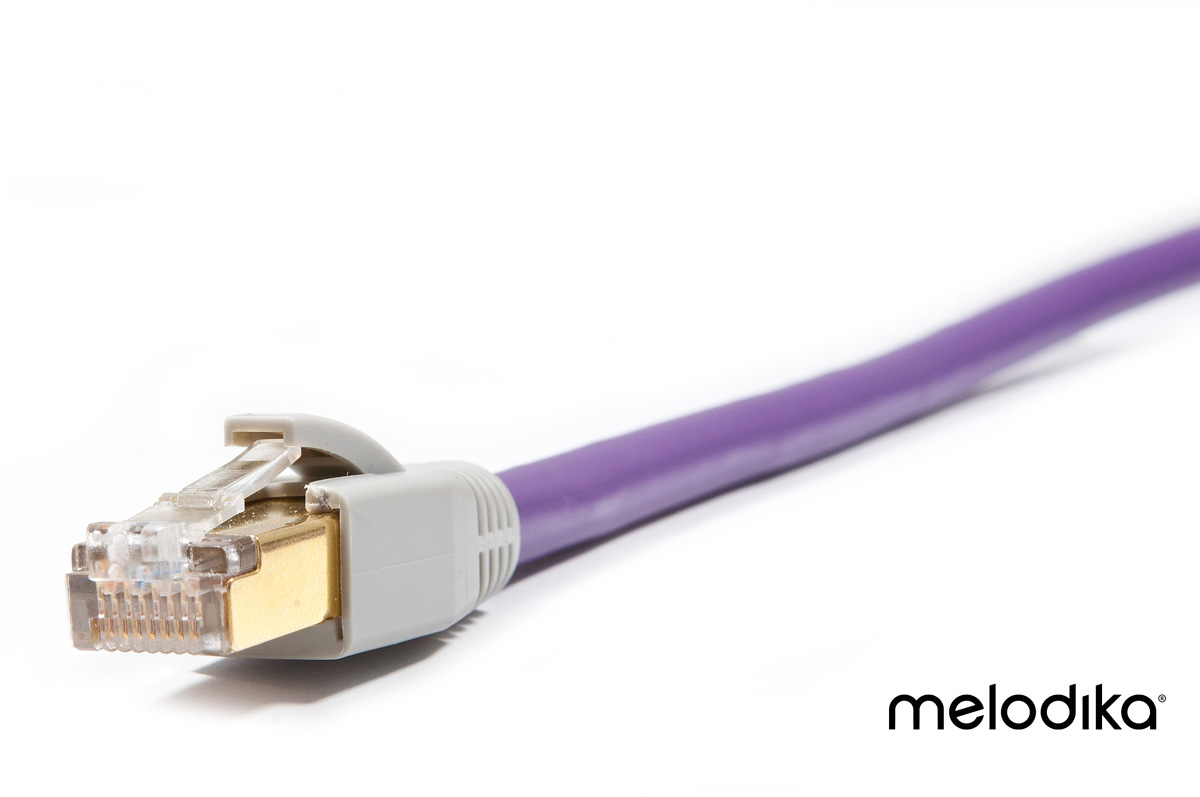

Melodika MDLAN10
The MDLAN cable line is Melodika's response to the changing needs of the consumers. Progressive transition of strict audio users to the digital domain, raises new problems with "dense" digital content transfer. DSD files, streaming in Master or MQA quality, movies in 4K Ultra HD - it all places very high demands on devices transmitting data in the audio-video system.
The same happens with accessories, which usually represent the weakest link in the system, thereby limiting its performance. In the case of network cables, the quality of cables available on the market is extremely wide and very difficult to assess, because the overwhelming majority of manufacturers do not specify the basic parameters of the offered products.
Designed for data, sound and video transmission with binary bandwidth above 1Gb/s.
MDLAN cable is equipped with an additional shielding and a ground wire, which protects it from external electromagnetic fields, what effects and helps maintain purity and continuity of the signal.
Melodika cable supports the frequency range up to 350MHz.
Main features:
* F/UTP construction
* Gauge: 4x2x0,57mm
* High quality OFC copper conductor
* Wave impedance 100 Ohm
* Outer diameter 7,5mm
* Gold-plated RJ45 plug
* Operates in the temperature range from -30 to +70℃
* Ideal for installation
Specification:
* Gauge: 4x2x0,57mm
* Quality: Oxygen Free Copper: 99.99%
* Shielding: Standard
* Shape: Round
* Diameter (cable thickness): 7.5mm
* Construction: FTP, Twisted, UTP
* Connectors: Gold-plated RJ45 plug
* Category: 5e, 6, 6e
* Others:
- Wave impedance: 100 Ohm
- Temperature range: from -30℃ to + 70℃
- Designed for data, sound and video transmission with binary bandwidth above 1Gb/s.
- MDLAN cable is equipped with an additional shielding and a ground wire, which protects it from external electromagnetic fields effects and helps maintain purity and continuity of a signal.
* Warranty: 24 months
