SpelareD/A-omvandlare (DAC)Musician Audio - Pegasus II R2R DAC
Musician Audio - Pegasus II R2R DAC
Musician Audio - Pegasus II R2R DAC
Musician Audio - Pegasus II R2R DAC - 2
Musician Audio - Pegasus II R2R DAC - 3
Musician Audio

Musician Audio - Pegasus II R2R DAC

15 490 SEK

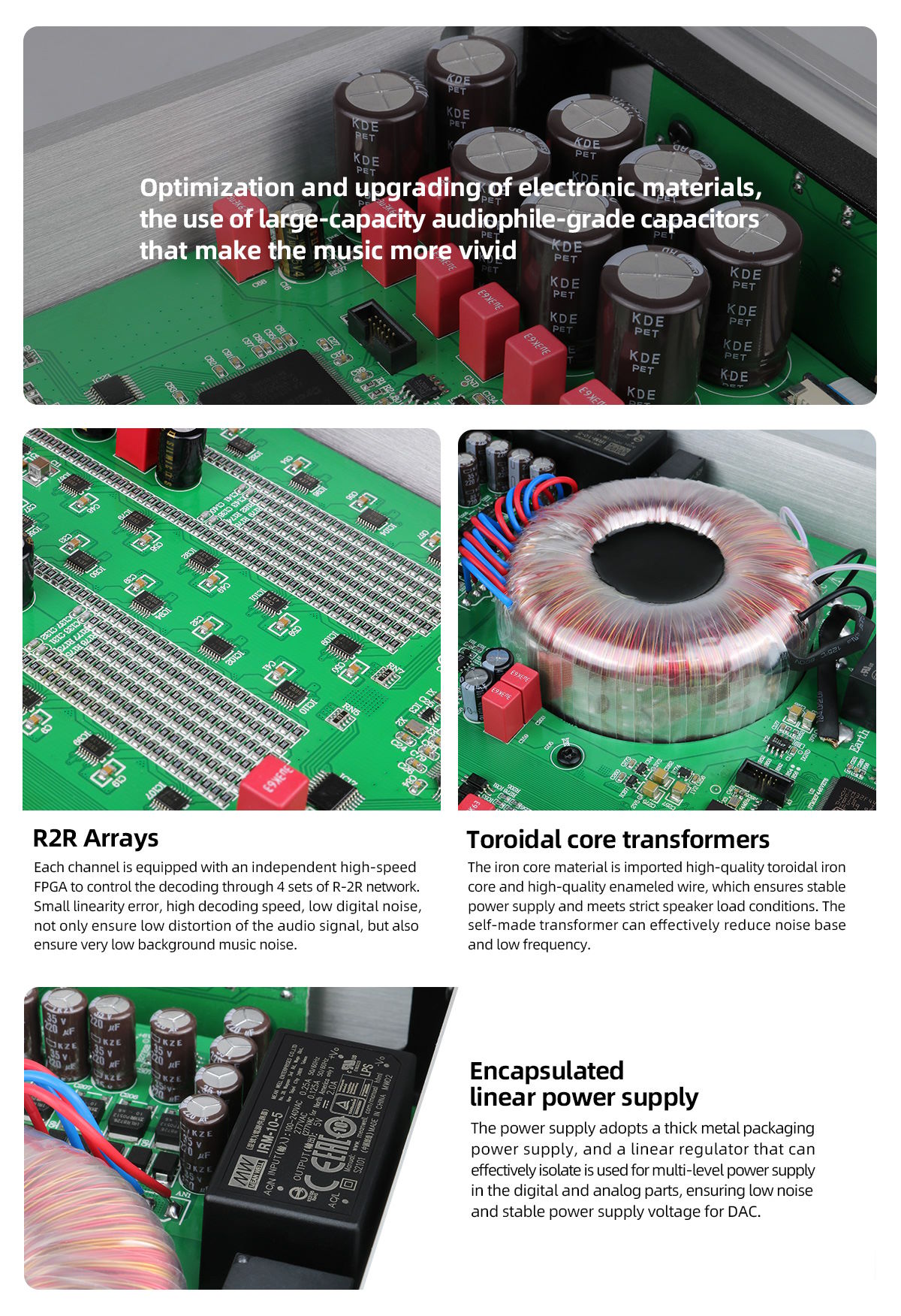

Musician Audio - Pegasus II R2R DAC är som namnet antyder en R2R DAC (fullt balanserad via XLR-utgångarna), stationär DAC. Version II av Musician Pegasus DAC har uppgraderade interna komponenter jämfört med sin föregångare för förbättrad prestanda (förbättrat FPGA chip - Altera Cyclone IV-chip - samt kondensatorer av audiofilkvalitet och oberoende strömförsörjning för dess digitala och analoga delar). Den hanterar ett stort antal olika avkodningstyper och samplingsfrekvenser (allt du kan tänkas behöva...). Den har ett väldigt avslappnat ("analogt"...) ljud, som ändå är precist och musikaliskt. OBS 1! Denna DAC går inte att använda som en förförstärkare eftersom den saknar volymkontroll. OBS 2! Musician Audio rekommenderar inte att man använder både RCA och XLR-utgångarna samtidigt Det går att göra, men ljudkvaliteten försämras avsevärt. Pegasus R2R DAC i korthet: * Egenutvecklad R2R och DSD-arkitektur * Helt balanserad 24BIT R2R + 6BIT DSD (32 steps FIR Filters) * Sampling Mode: Non-Oversampling NOS / Oversampling OS * Supported sampling rates - I2S / USB : PCM upp till 32bit 1536kHz, DSD upp till DSD1024 - Övriga ingångar: PCM upp till 24bit 192kHz, DSD DoP upp tillDSD64 * Ingångar (Digitala) - 1xUSB-B, 1xCoaxial (SPDIF), 1xOptisk Toslink, 1xAES/EBU, 1x I2S via HDMI LVDS * Utgångar (Analoga) - 1x RCA, 1x Balanced XLR * Finns i silver och svart I paketet ingår: * 1x Musician Audio - Pegasus R2R DAC * 1x Strömkabel "This is a slightly more refined version of the good old Pegasus while retaining absolutely the same price point it had four years ago. If that is not progress I don't know what is... [...] Everything that you liked about the original Pegasus is still in here on the Pegasus II, just a little bit better. [...] I do wholeheartedly recommend the Pegasus II - especially for music lowers around the globe." SoundNews.Net (Feb 2024)
Läs mer...
  • Maila gärna eventuella frågor. Jag svarar så snabbt jag kan.

    Beskrivning

    Art.nr: MUSICIANAUDIOPEGASUSMK2

    Musician Audio Pegasus II R2R DAC

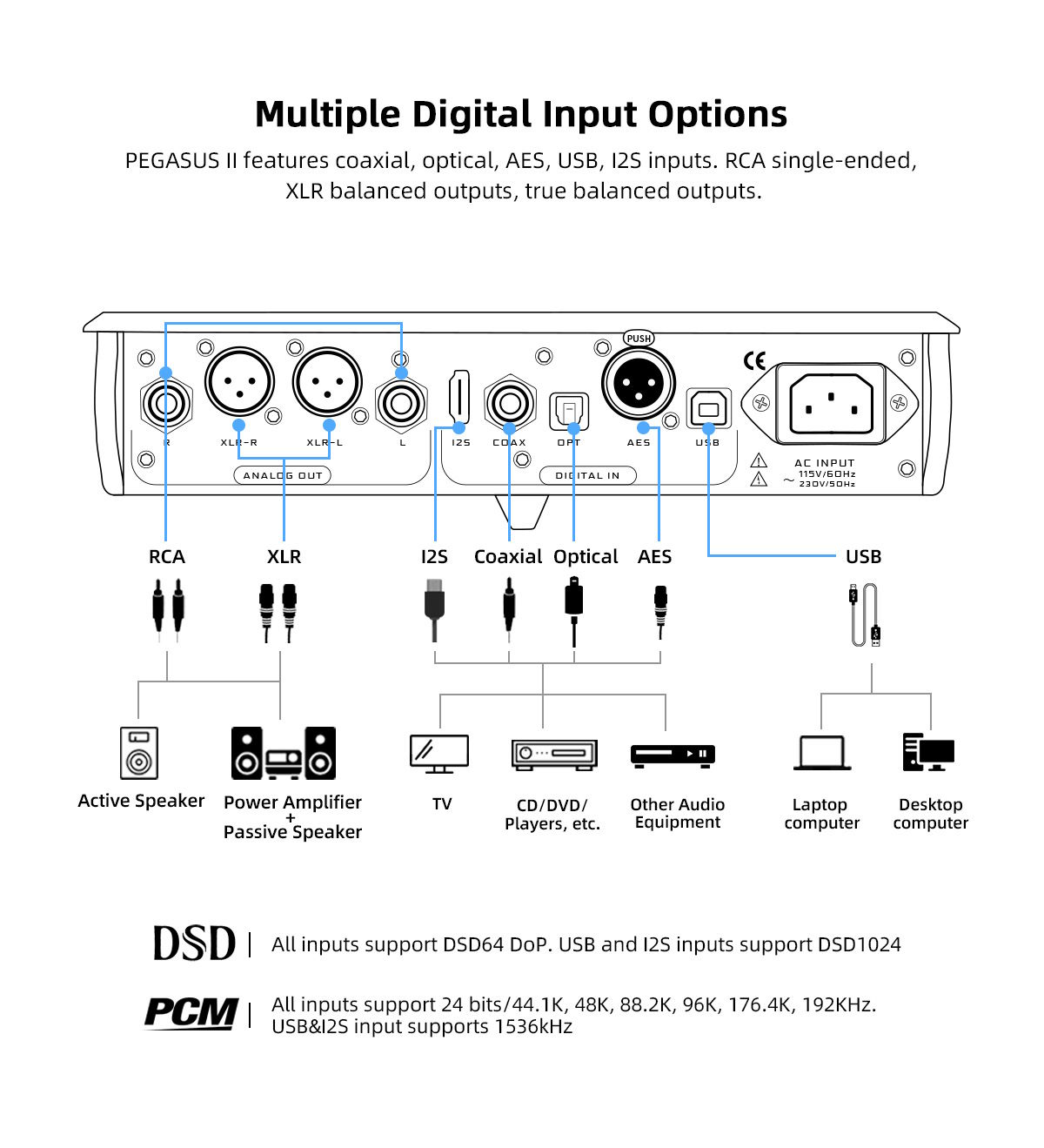

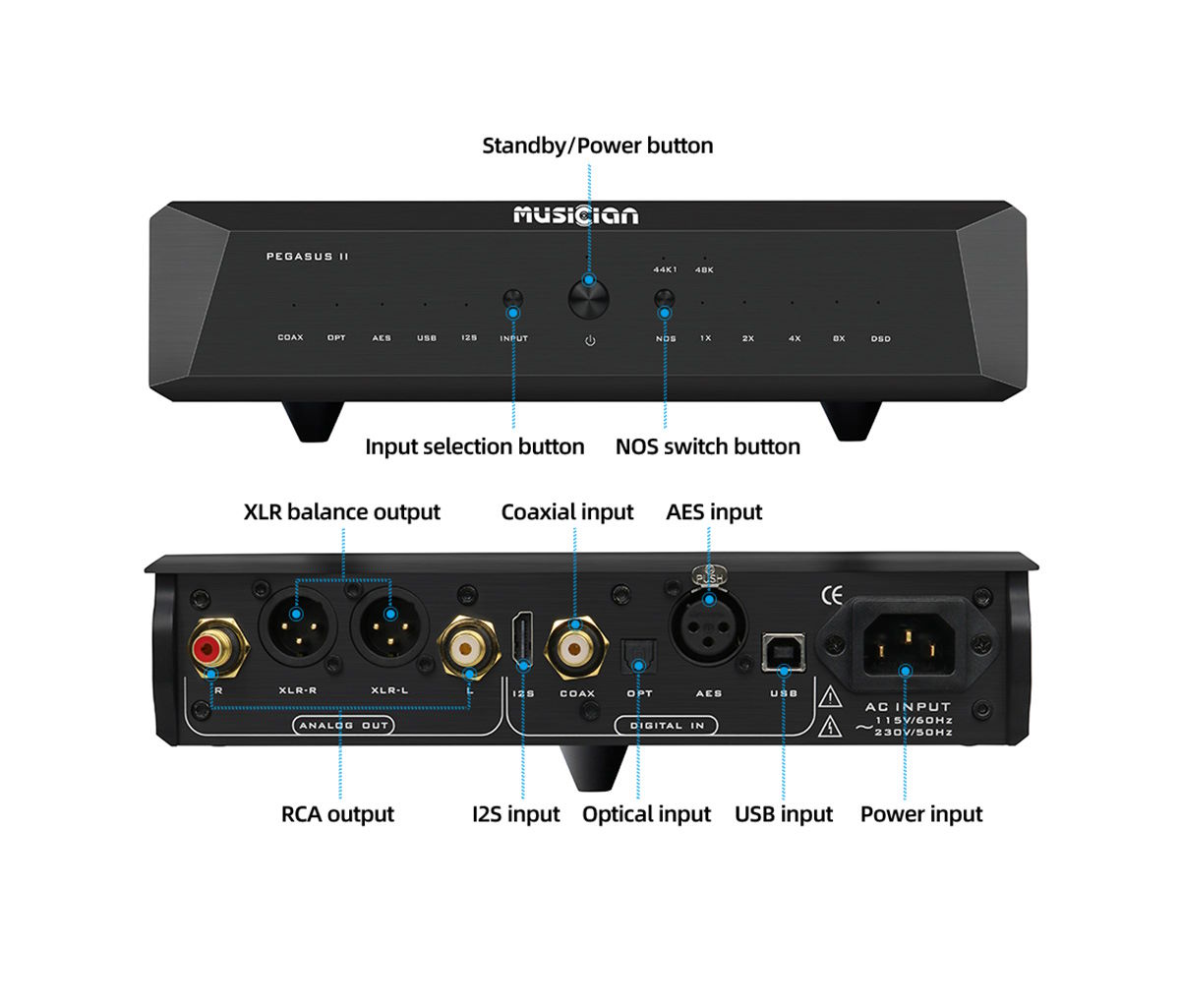

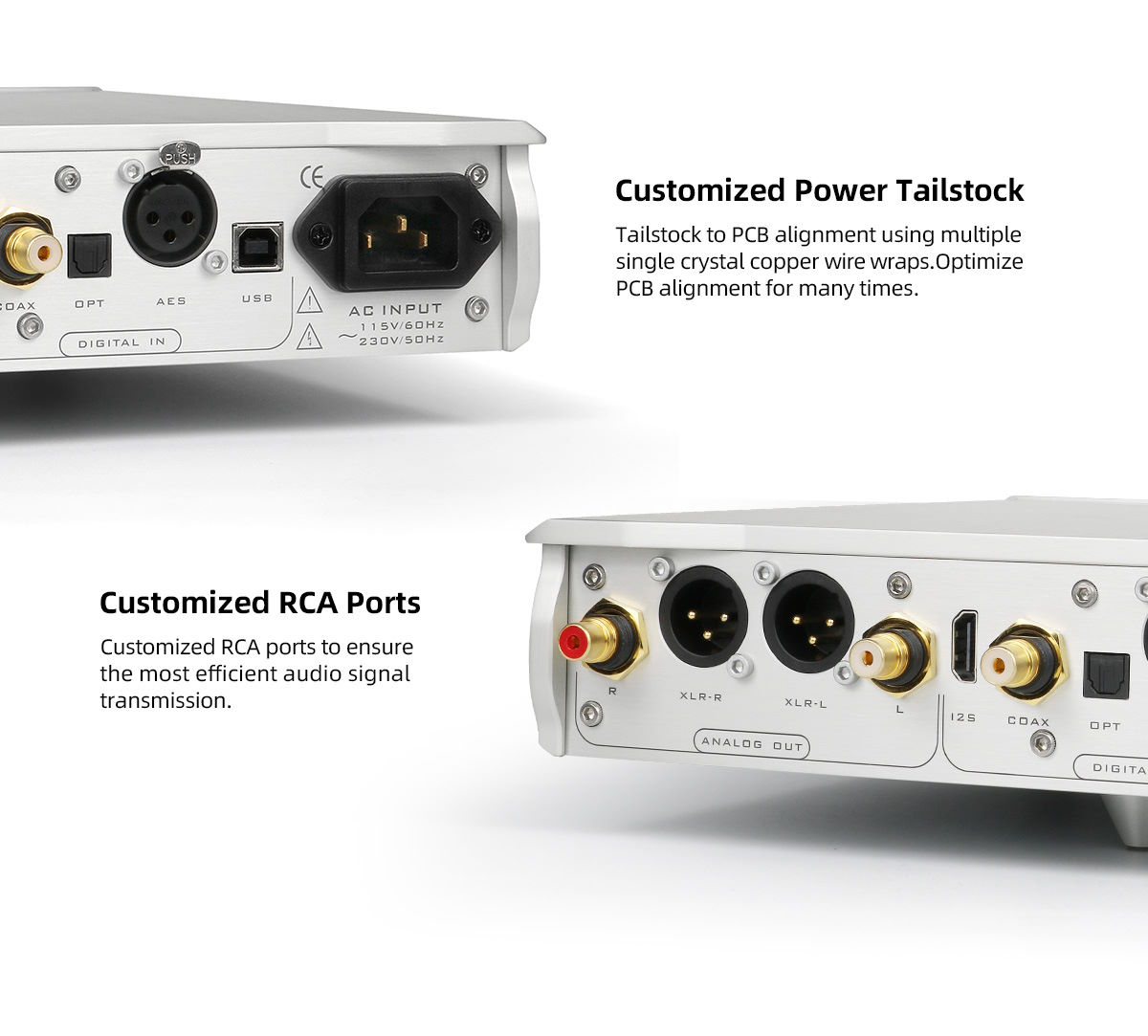

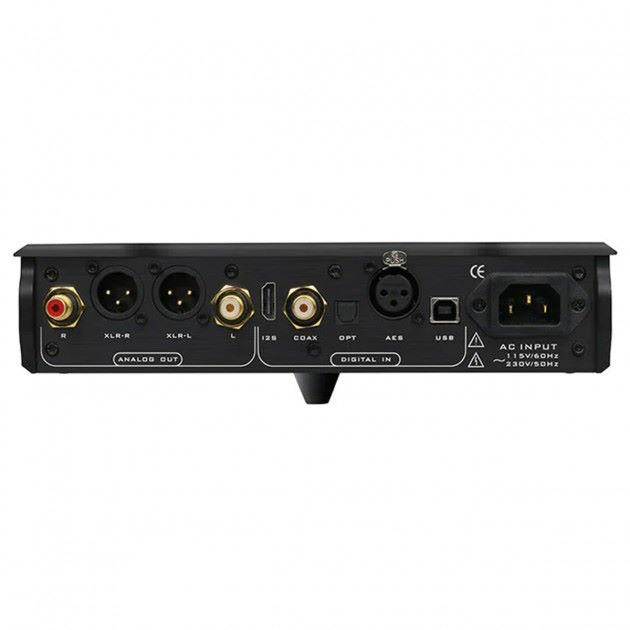

    The Musician Audio Pegasus II R2R DAC is a really accomplished and powerful DAC. It uses the R2R architecture. Integrating the best current technologies. The device is a best of breed using a low-noise power supply, a FIFO buffer, signal processing by FPGA and a FIR filter. It is therefore capable of decoding very high sample rates, up to 32bit PCM 1536kHz and DSD1024 via its USB and I2S inputs. The USB interface is handled by a STM32F446 MCU with Thesycon driver. The unit is encompassed in a massive Aluminium case. The Musician Audio Pegasus R2R DAC includes most of the connections common to today's HiFi devices. We have inputs of USB-B, I2S via HDMI LVDS, AES/EBU, Toslink Optics and Coaxial. On the output side, the device offers both unbalanced RCA and balanced XLR, the latter output being obviously recommended to take advantage of the full potential of the device. NB! It is not recommended to use the XLR and RCA outputs simultaneously, as these are shared. Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II Musician Audio - Pegasus II

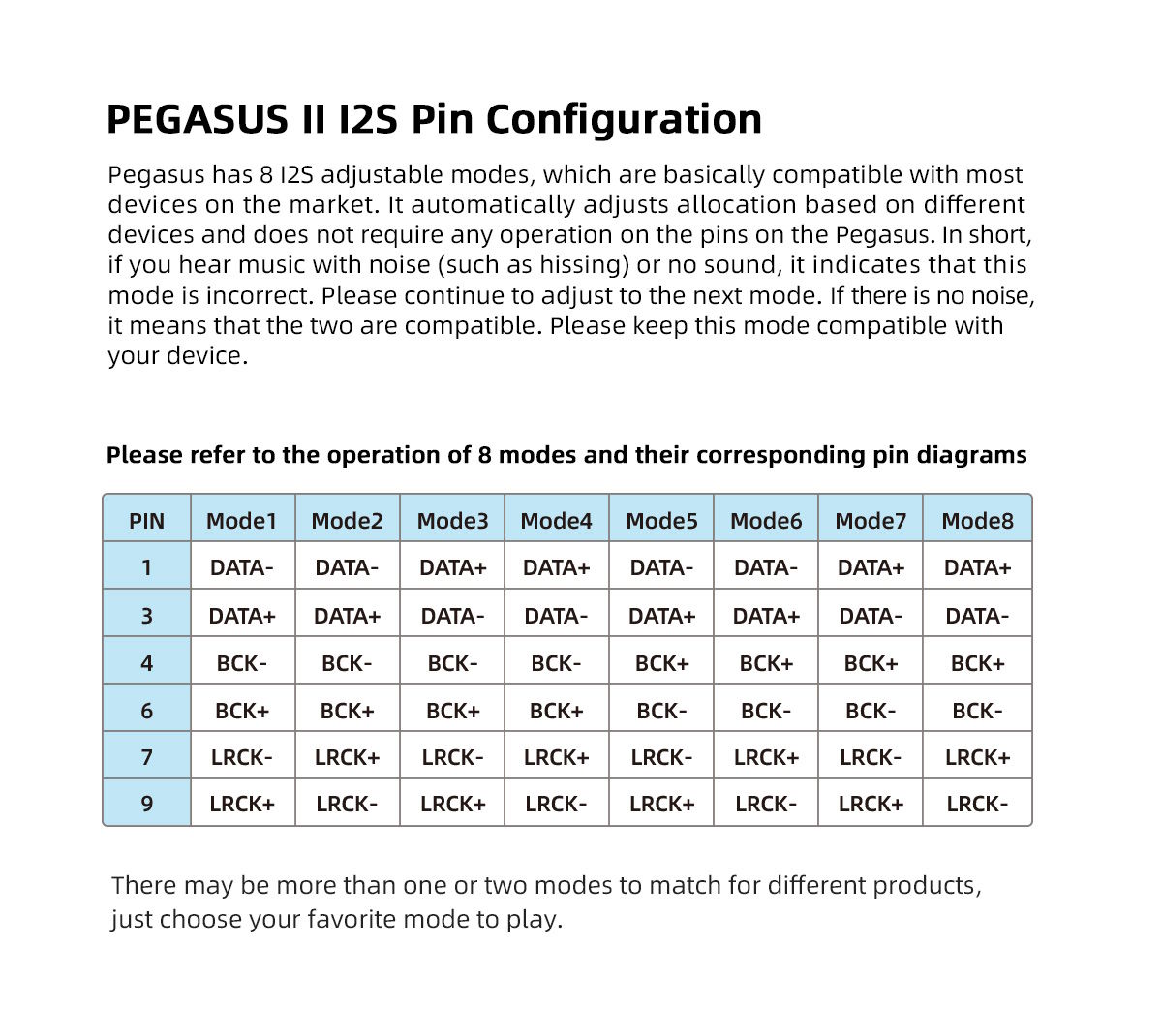

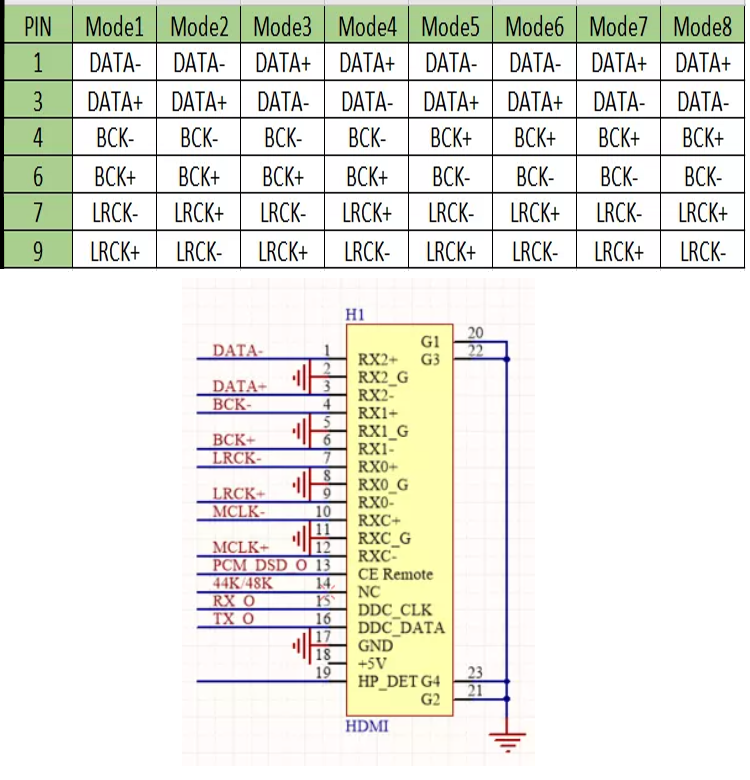

    I2S Pin Configuration of Pegasus PS: There is no industry standard of I2S connection. Different brand/product has different I2S line order. MUSICIAN Pegasus is trying to compatable with most of device by the following mode setting method if you are using standard HDMI cable: 1. Select the sound source input to I2S; 2. Press and hold the NOS button for 3 seconds until the I2S light flashes; 3. Press the NOS button during the flashing process to cycle through the phase modes (there are total 8 modes, 1X, 2X, 4X indicator lights are binary mode Display); 4. Stop the operation when you selected the satisfied sound, the machine automatically exits the mode setting function. Through the below I2S settings, Pegasus can basically meet most of the brands on the market. Musician Audio - Pegasus If it can not playing properly(such as hiss sound) by the above setting. This shall not be considered as a defective product, but just a matching failed. The suggested solution is to use a customized HDMI cable (The pin layout is as above).
    Pegasus has it's own upscaling function in the internal, which supports up to 16 times.

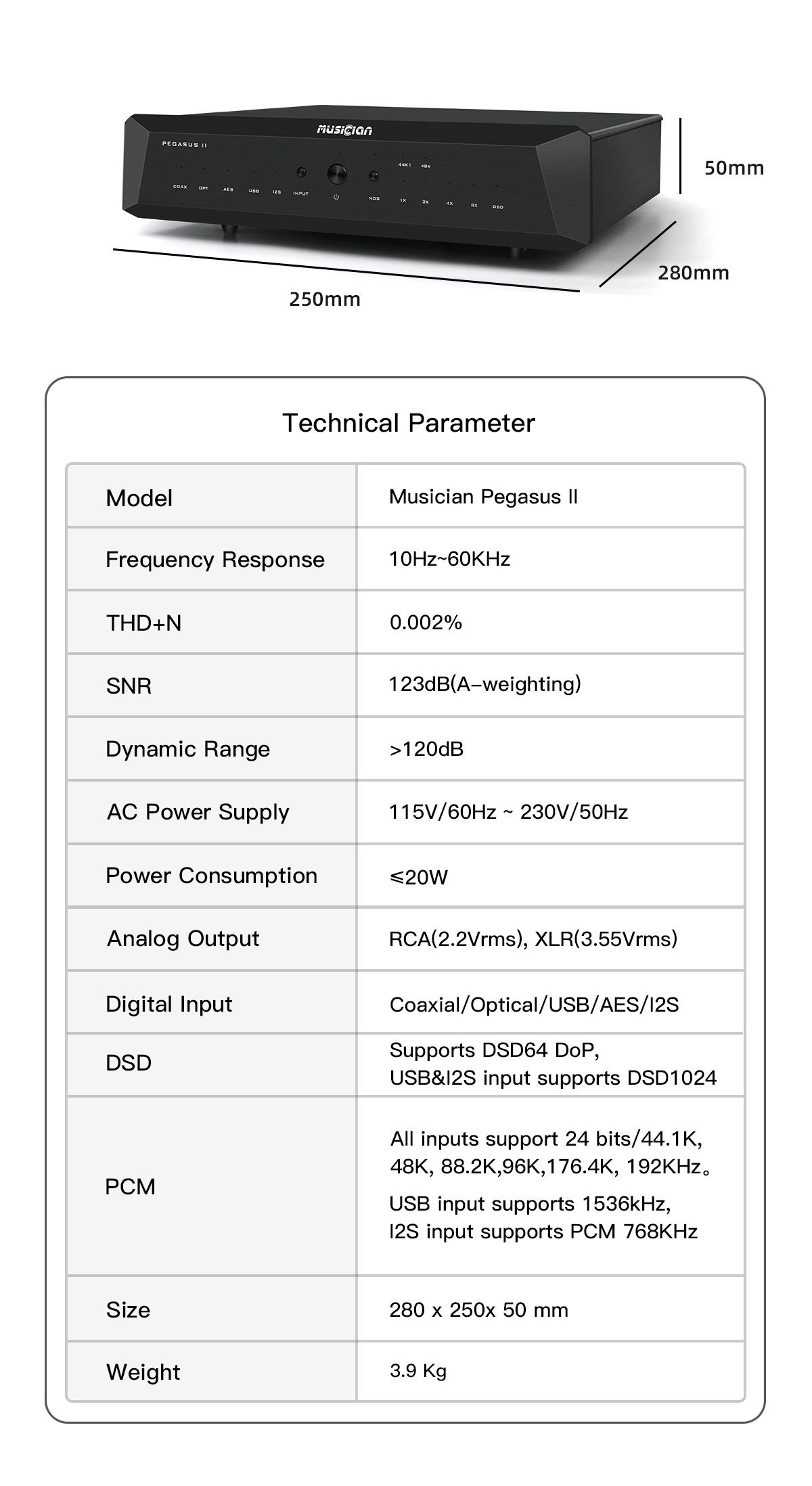

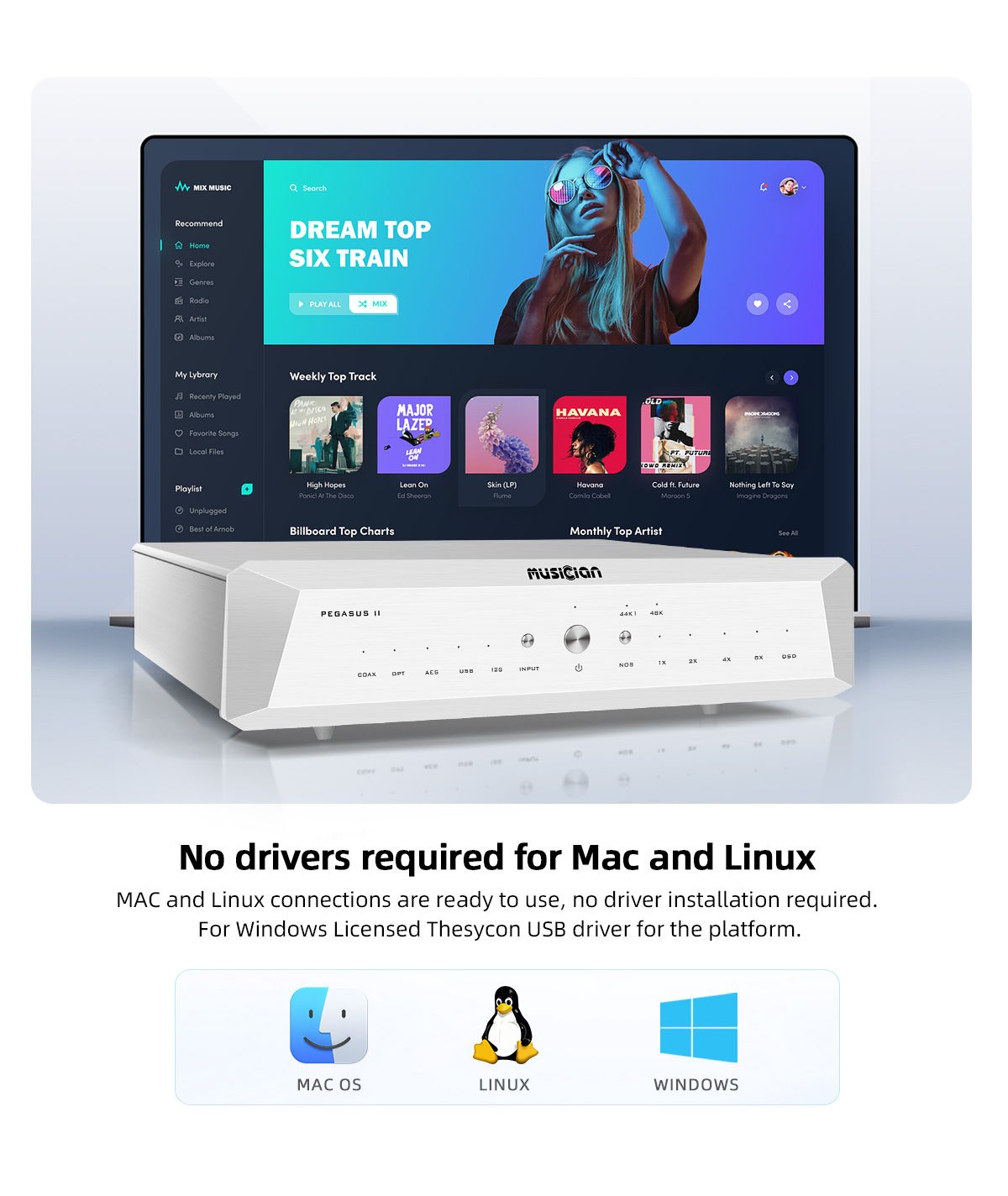

    Specifications: * Proprietary R2R + DSD Architecture * True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters) * Inputs (Digital) - 1x USB-B - 1x Coaxial - 1x Optical Toslink - 1x AES/EBU - 1x I2S via HDMI LVDS * Outputs (Analogue) - 1x Single-ended RCA - 1x Balanced XLR * FIFO Buffer * Digital Signal Processing via FPGA * Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU * Licensed Thesycon USB Driver For Windows Platform * Driverless On Mac & Linux * Low Noise Power Supply * FIFO Buffer * Sampling Mode: Non-Oversampling NOS / Oversampling OS * Supported sampling rates - I2S / USB : PCM up to 32bit 1536kHz, DSD up to DSD1024 - Others inputs : PCM up to 24bit 192kHz, DSD DoP up to DSD64 * Frequency Response: 10Hz~60KHz * THD+N: 0.002% * S/N Ratio: 123dB (A-weighted) * Dynamic Range: >120dB General * AC Power Requirement: 110-240VAC, 50/60Hz (Worldwide Voltage) * Power Consumption: ≤20W * Dimension: 280 x 250x 50 mm * Package Dim: 375 x 330 x 115 mm * Package Content: DAC + AC power cable. NB! No remote control. * Weight:3.9 Kg * Color: Black
