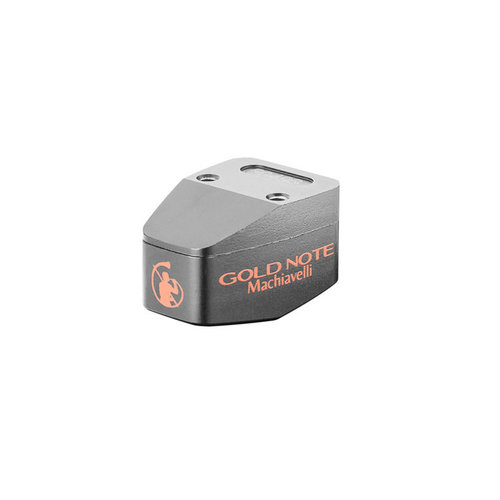

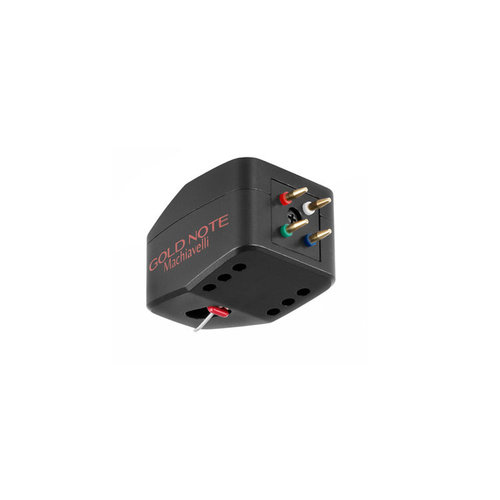

Gold Note Machiavelli Red MKII MC-pickup

MACHIAVELLI MKII - THE HIGH CLASS LOW-OUTPUT MC PHONO CARTRIDGES FROM GOLD NOTE MACHIAVELLI MKII COMES WITH EVEN BETTER OUTPUT LEVEL AND IMPEDANCE VALUES Machiavelli's extra rigid cantilever handles a high precision Line Contact diamond in the Gold model and a Micro Elliptical diamond in the Red model, both developed in collaboration with Ogura the inventor of the Line-Contact diamond shape. The diamond tip is mechanically inserted and blocked into the new cantilever that is consequently handled by a special pipe to increase the structure rigidity. The Machiavelli Series can be easily matched with any active phono preamp for MC cartridges, without the need of Step-Up transformers. The cantilever suspension takes advantage of an elastic and non-deformable harmonic steel spring, rigidly blocked to eliminate vibrations thus enhancing the tracking capability. With thin and long gold-plated pin connectors, Machiavelli is designed to connect perfectly with arm cinches, reducing energy dispersion and improving grounding for an ideal music background necessary to enjoy even the smaller details of your records. Machiavelli Red mkII offers extra rigidity with its Aluminium cantilever and 40Ω high internal impedance and 0.5mV output level to easily match with MC phono preamps set-up without Step-Up transformers. TECHNICAL SPECIFICATIONS * Typology: MC Low Output Phono Cartridge * Output level: 0.5mV * Frequency response: 10-40000Hz * Impedance: 40Ω * Suggested load: 470Ω * Compliance: 10×10-6cm/dyne * Channel separation: > 28dB * Suggested tracking weight: 1.8 to 2.1g * Cantilever: Aluminum * Diamond: Micro Elliptical * Diamond size: 7.5×15.5μm * Coil Wire: Copper * Magnet: Samarium-Cobalt * Mounting hole diamond distance: 9mm * Weight: 10g FINISHES BODY Body 7050 Duraluminium alloy COLOR Black with Red Logo
