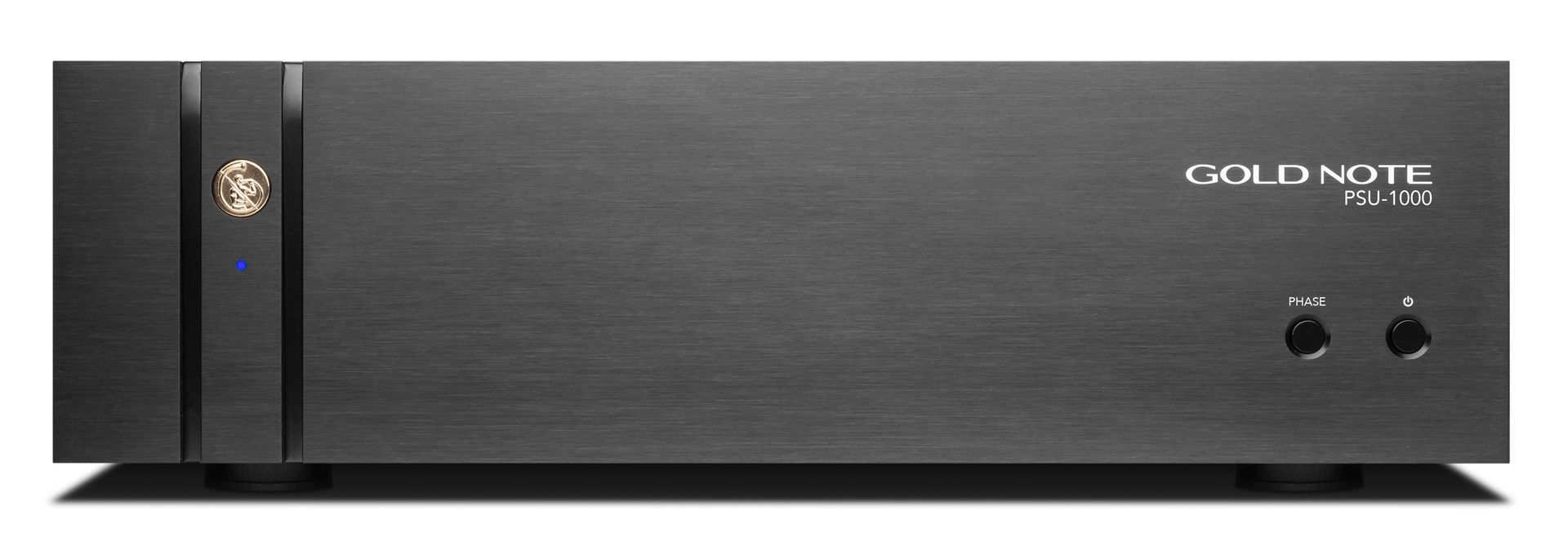

Gold Note PSU-1000

PSU-1000 - SUPER INDUCTIVE POWER SUPPLY PSU-1000 has been developed to over drive all 1000 series units, except the amps, to achieve the best resolution. Powered with Super Inductive Dual Choke hybrid design it features an inductive filter on the analogue stage and a dual choke design controlled by a double inductor driving both the negative and positive high-current stages.
The Dual Choke design - a Gold Note proprietary technology - perfectly filters the signal voltages to eliminate interference and electrical noise from the AC power system.
 With its massive 1000 watt overall power supply it is capable of providing a shield from the AC power grid to achieve complete insulation, granting an ideal working environment to let the electronics perform at their best. The massive ultra-clean power thus generated enhances noise reduction, greater dynamic, better resolution and finer details guaranteeing the best realism and musicality.

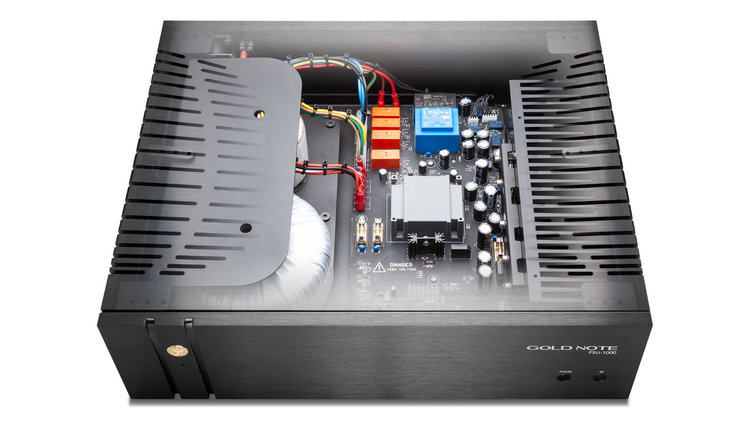

 PSU-1000 is powered by 5 transformers: 3 dedicated to the power supply, 1 for the inductive choke filter, 1 for the galvanic insulation of the audio stage.
 PSU-1000 can match: CD-1000, DS-1000, P-1000 & PH-1000 FINISHES - CASE Brushed Aluminium | Black, Silver or Gold TECHNICAL SPECIFICATIONS * Seven rail audio grade power supply * Seven low noise voltage regulator * +12V, +8V, +5V for logic * +/- 12V for analog with inductive noise remover * +/- 28V for analog with inductive noise remover (only with P-1000) * Line & Load regulation for all outputs: 0,05 %/V * Line noise rejection: >80dB * Common mode noise rejection: >80dB * Full power response time: <2,5uSec * Absolute phase control from front panel POWER * Main supply: 100/120V & 220/240V with automatic selection, 50/60Hz * Total Power Reserve: 1000W * Power Absorption: 100W * Dynamic power: >200W * Stand by power: <1W DIMENSIONS & WEIGHT * 425mm L | 110mm H | 360mm D * 20 Kg
