GUSTARD DAC X18
GUSTARD DAC X18
GUSTARD DAC X18 - 2
GUSTARD DAC X18 - 3
Gustard Audio

GUSTARD DAC X18

8 990 SEK
********* FINNS FÖR DEMO ********* Gustards helt nya högpresterande DAC X18 är uppbyggd kring Sabres ESS9038PRO DA-chip som bl.a. stöder full avkodning av MQA inte bara via USB-ingången utan även via AES-, koaxial och de optiska ingångarna. Detta är en extremt "tyst" och mångsidig DA-omvandlare som tillhandahåller en extremt korrekt återgivning av alla inspelningar. GUSTARD DAC X18 i korthet * ES9038Pro DAC * XMOS XU216 16-Core USB Signal Receiver. * CPLD Digital Processing. * Hi-Res File support(PCM avkodning upp till 32-Bit/768kHz, DSD upp till DSD512 natively). * Full MQA-avkodning. * High-Definition Bluetooth anslutning (5.0). * IIS HDMI Input. * Fjärrkontroll med full funktionalitet. I paketet ingår: * 1x Gustard DAC X18 * 1x USB-kabel * 1x fjärrkontroll * 1x Bluetoothantenn "I live for happy days like this: another instrument grade, exceptionally well engineered audio product in the form of X18. It is clear a ton of effort has gone into providing full transparency to input signal. Yes, the cost is up there but if you want the best, you now have one more option. It is my pleasure to recommend the Gustard X18 DAC." AudioScienceReview.com (Dec 2021)
Läs mer...
  • Maila gärna eventuella frågor. Jag svarar så snabbt jag kan.

    Beskrivning

    Art.nr: GUSTARDX18

    GUSTARD 18 DAC

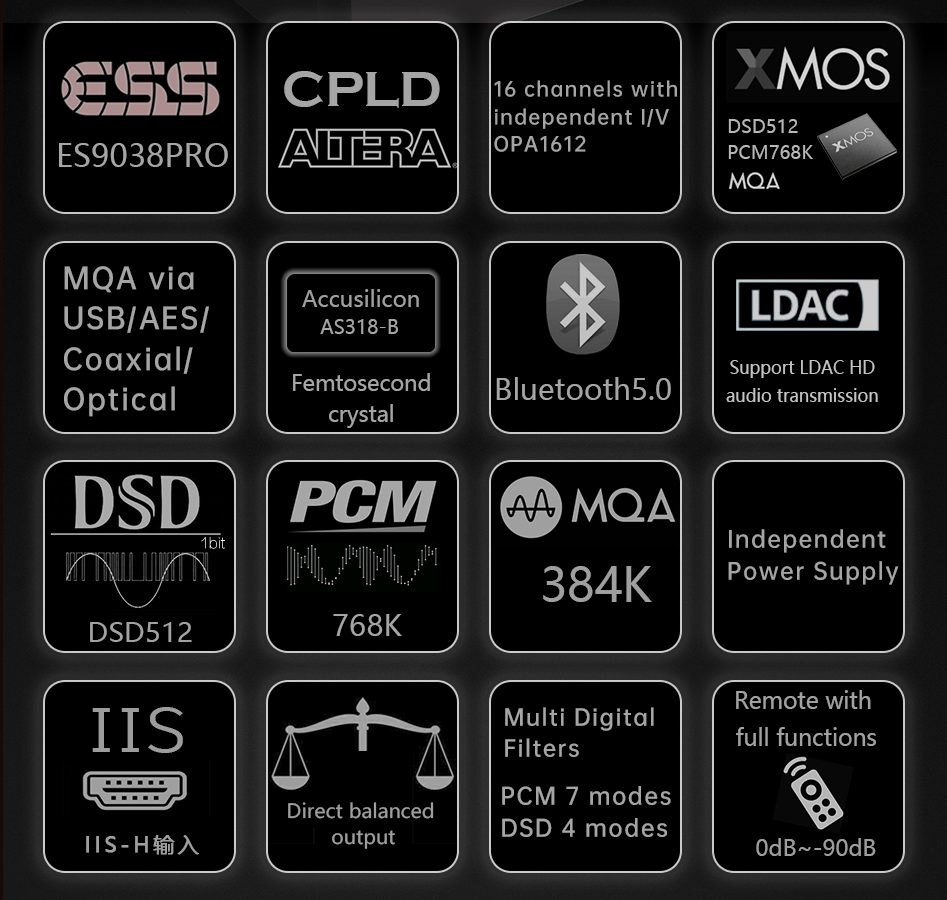

    DAC ES9038PRO XMOS I2S CPLD Accusilicon Bluetooth 5.0 32bit 768kHz DSD512 MQA The Gustard X18 is a versatile and extremely powerful DAC, capable of high quality digital/analog conversion for the most accurate and faithful sound reproduction. Gustard DAC X18 ES9038Pro At the heart of this X18 is a digital/analog conversion stage using an ESS ES9038Pro chip, known for its incredible performance and its ability to provide a particularly accurate and transparent sound reproduction. The chip has here an independent power supply allowing it to reveal its full potential. CPLD The embedded Altera Max V CPLD incorporates a number of technologies, including clock management, PLL, DoP decoder and digital filters. I/V Conversion The X18 has no less than eight independent I/V converters, each dedicated to a channel of the DAC, using OPA1612 AOPs. These offer excellent measurements with extremely low distortion and noise levels. Resistors with a tolerance of 0.1% are used for the key sections of this I/V converter. Accusilicon A5318-B Clocks Two Accusilicon A5318-B clocks ensure perfect synchronization of the audio signal for a particularly low jitter level, promoting clear and pure playback. XMOS XU216 USB Interface The USB input of the X18 uses an XMOS XU216 interface. It supports high resolution streams, up to 32bit 768kHz PCM and DSD512, while ensuring accurate and neutral sound. Bluetooth 5.0 The Gustard X18 features Bluetooth 5.0 reception, allowing you to stream your music remotely, for example from a smartphone or tablet. The integrated chip supports the high-definition transmission codecs aptX HD and LDAC, ensuring sound quality equal to or better than CD quality. MQA MQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers or rights holders. These files are light enough to stream or download. The Gustard X18 has a built-in MQA decoder to play these files for the best possible audio quality.
    SPECIFICATIONS * Product type: DAC * DAC Chip: 2x ES9038Pro * Inputs: - Bluetooth 5.0 - 1x USB-B - 1x I2S LVDS via HDMI - 1x Coaxial S/PDIF - 1x AES - 1x Optical Toslink * Outputs: - 1x Single-ended stereo RCA - 1x Balanced XLR * DAC Chip: ESS ES9038Pro * USB interface: XMOS XU216 * CPLD: Altera * Supported sampling rates - USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA - I2S : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD512 - AES, Coaxial, Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64, MQA * Supported Bluetooth codecs: AAC, SBC, aptX, aptX LL, aptX HD, LDAC * Frequency response: 20Hz-20kHz ±0.08dB Other specifications * Supply voltage - AC 115/230V 50/60Hz * Dimensions - 220 x 170 x 50mm * Weigth (inc box): 2,5kg * Case material - Brushed Aluminium * Color - Black or Silver
