Kinki-Studio

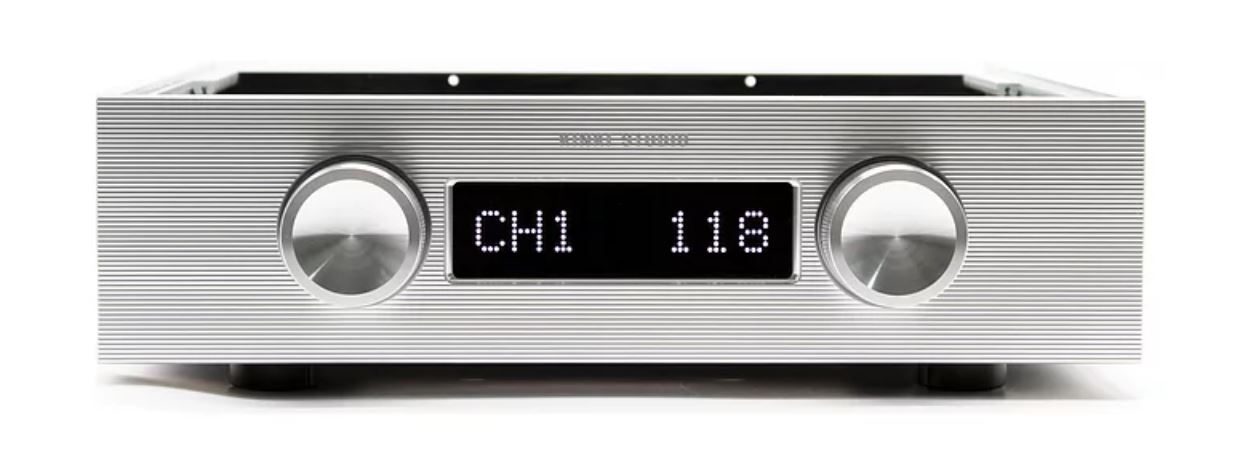

Kinki Studio - EX Series P7 - Förförstärkare
EX Series P7+ är Kinki Studios fantastiska förförstärkare.

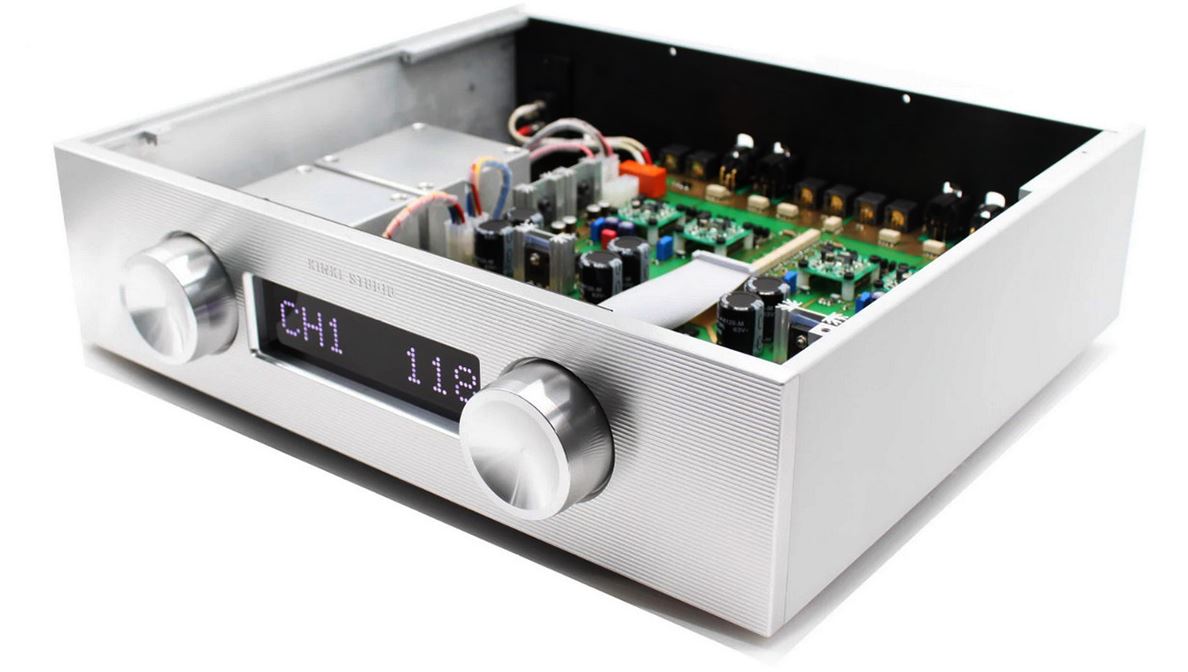

Dess hölje är framställt ur ett CNC-bearbetat aluminiumblock (8-10mm tjockt skal) som kapslar in elektroniken, så att den eliminerar all EMC-/EMI-störning.
Den är dessutom uppbyggd som en dubbel mono-konstruktion med två stycken AMPLIMO transformatorer som tillhandahåller dess kraftmatning - en för respektive kanal.
En avancerad mikroprocessorkontrollerad, reläbaserad R2R-dämpare. Den extremt precisa 256-stegs linjära volymkontrollen låter dig som lyssnare finjustera nivån vid lyssning även vid låga ljudvolymer.
Resultatet är en extremt tyst förförstärkare som spelar detaljerat, varmt och musikaliskt.
EX Series P7 - I korthet:
* Låda av solid aluminium
* Dual-mono design
* R2R volymkontroll

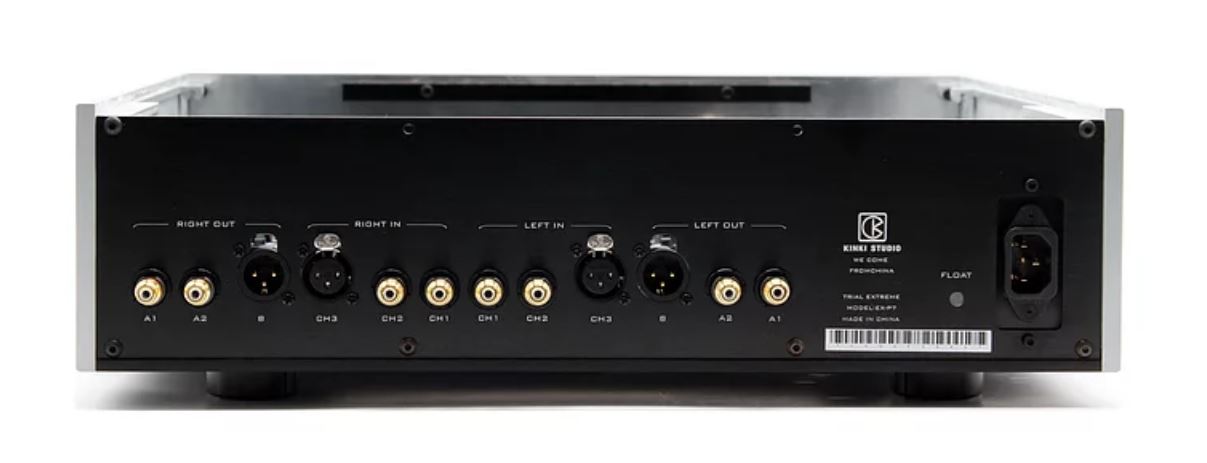

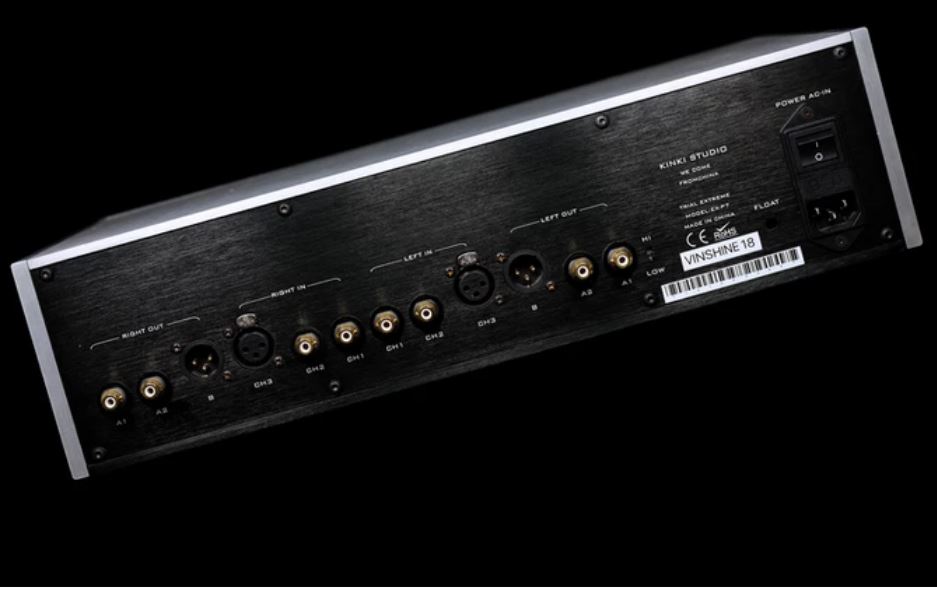

* Ingångar: RCA x 2, XLR x 1
* Utgångar: RCA x 2, XLR x 1
Levereras med:
* Fjärrkontroll
* Strömkabel (billigare variant) - rekommenderas att byta ut
"The reason why—in a far more populous audiophile world—Kinki Studio's EX-P7 would be a disruptor is that it embodies a very modern Nagra-esque aesthetic at somewhat lower potency for a fraction of the Swiss sticker which only sacrifices extreme magnification power in trade. To move past it comes at disproportionate expense."
6Moons (Oktober, 2018)
- Maila gärna eventuella frågor. Jag svarar så snabbt jag kan.
Beskrivning
Art.nr: KINKISTUDIO_EX_P7
The Kinki Studio - EX-P-7

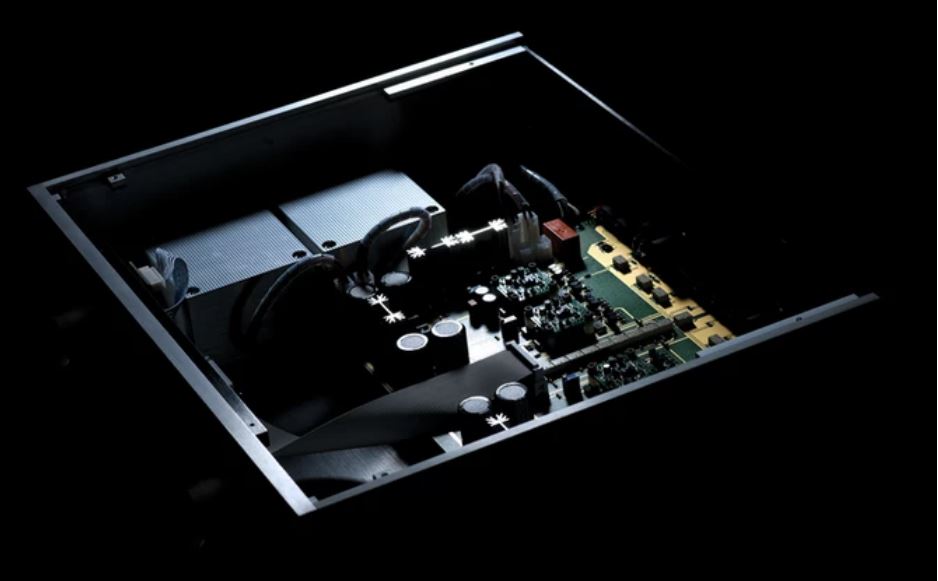

The EX Series is tuned to reproduce sound quality with balance mid and smooth extension in both ends, high and low extension. True Class-A biased, fully discrete input and output stages are the heart of the EX-P7. Rich in tonal quality, details, and high resolution. Silky smooth volume control thanks to the discrete R2R volume control, of which known for its precise and accurate volume adjustment with precision matched resistors. R2R VOL CONTROL Most preamps use a potentiometer for volume control. EX-P7 uses an advanced microprocessor-controlled, relay-based R2R steps attenuator. Ultra-precise 256 steps linear volume control allow you to fine adjust the volume for late-night-listening. COST-NO-OBJECT The EX-P7 uses extremely high cost 0.2µm gold-plated printed circuit board (PCB). From the perspective of PCBs, it is clear that the designer is well aware of the limitations on the fine contact area of the general circuit board, specifically increasing the soldered area at each solder joint and adding as much shielding as possible GOODBYE NOISE, WELCOME DARKNESS The two UK-made AMPLIMO transformers are installed in the CNC-machined aluminum encapsulation, and the entire chassis is made of 8-10mm thick of anodized aluminum block, effectively eliminate the nasty EMI/EMC induced from the surrounding equipment. SOUND CHARACTERISTIC Neutrality and musicality were the goals to achieve. Rich tonal quality, vivid sound imaging, details, high resolution and dynamic. The choice of the components, design, and tuning does just that. It is the Kinki Studio gears' sound signature. It uses two UK made AMPLIMO transformers, one each for Left and Right channel power supplies, so that the power does not interfere with each other to improve the channel separation. EX-P7 is essential dual mono design in the same chassis. Specification Parameters * Frequency Response: 0-150kHz (±1dB) * THDN: 0.003% (-80dB) * S/N Ratio: >90dB * Channel Separation: >90dB * AC Power: 110/240VAC, 50/60Hz (Factory configure) Input / Output * Input Sensitivity: 2.25Vrms - 3.6Vrms * Input Impedance: 50kΩ * Input Connector: RCA x 2, XLR x 1 * Output Voltage: 2.25Vrms - 3.6Vrms * Output Impedance: 75Ω * Output Connector: RCA x 2, XLR x 1 Dimension & Weight * Dimension: 430W x 125H x 370D * Weight: 13KGFiler och media
 | 6Moons (Oktober, 2018) |
