Kinki Studio - VISION THR-1
VISION THR-1 är Kinki Studios hörlursförstärkare.
Massivt aluminiumchassi och byggd med kvalitetskomponenter som ALPS, WIMA och Neutrik.
Den är ett riktigt kraftverk som klarar av att driva de mest krävande hörlurarna.
Går även att använda som en enklare passiv förförstärkare genom att trycka på en knapp på fronten.
VISION THR-1 - I korthet:

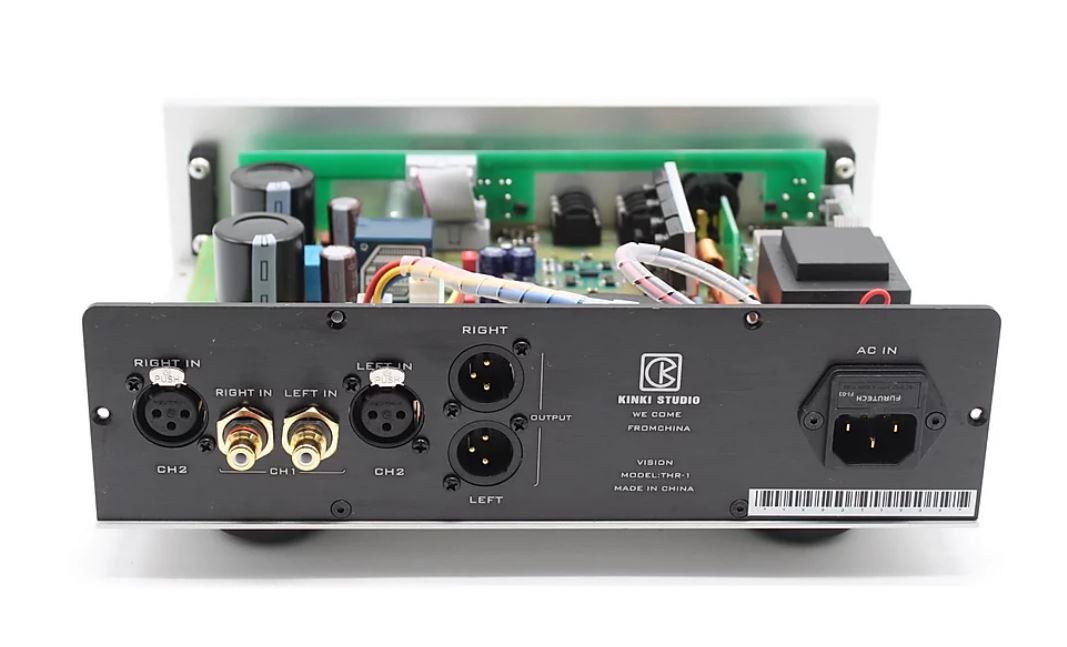

* Ingångar:
- 1 st RCA
- 1 st XLR

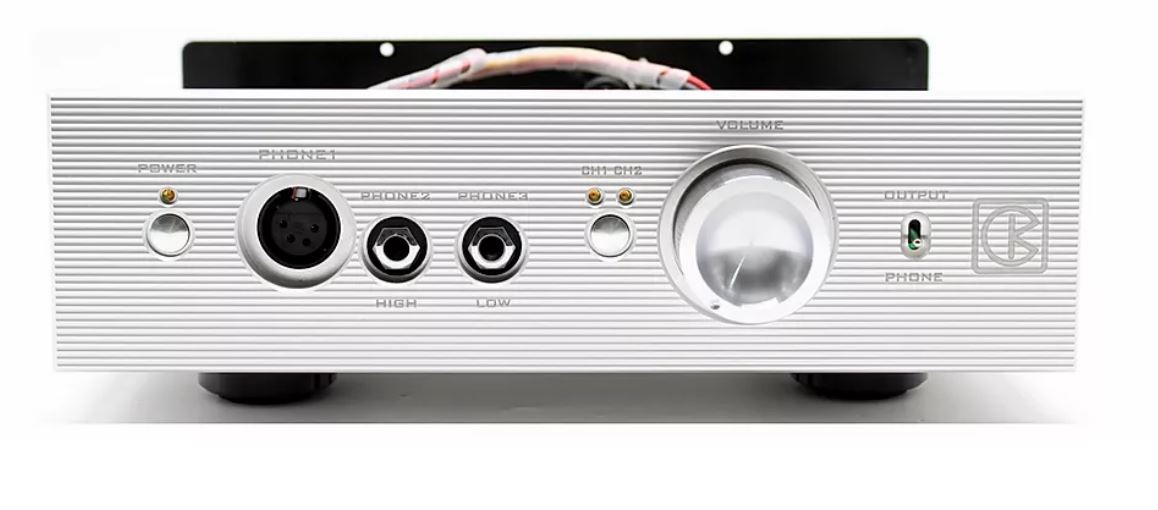

* Utgångar:
- 1 st 6.3mm (impedans >= 400ohms)
- 1 st 6.3mm (impedans < 400ohms)
- 1 st XLR 4Pin (balanserad)
* Utgångseffekt: 2.2W 300Ω, 1.3W 600Ω.
* Passiv förförstärkare - en uppsättning XLR-utgångar
Levereras med:
* Fjärrkontroll
* Strömkabel
"It sounded impressive with IEMs, with dynamic headphones and with planar-magnetics alike so I consider it really versatile. If you look for a full-bodied sound, carrying a heavier tone, that is smooth, unoffensive and that can be listened for a very long session, then THR-1 is a logical recommendation. That hint of warmness, that effortless presentation made pairing and system matching a much easier task and it worked well even with hot sounding sources.
THR-1 also came out as a soundstage king, that reminded me a lot about good tube designs without their shortcomings."
Soundnews.net (Jan 2020)
- Maila gärna eventuella frågor. Jag svarar så snabbt jag kan.
Beskrivning
Art.nr: KINKISTUDIO_THR1
The Kinki Studio - VISION THR-1
The VISION THR-1 headphone amp is designed to drive any headphone, literally. RMS output power rated at 2.2W 300Ω, 1.3W 600Ω. It comes with tripper headphone output jacks. Two Neutrik 6.3mm single ended jacks cater for low impedance and high impedance headphone, respective. One balanced Neutrik 4-Pin jack for the convenience to use with balanced headphone. PREMIUM COMPONENTS UK-Made AMPLIMO transformer, genuine premium parts sourced from legit distributors, i.e. RS-Component/Mouser/DigiKey/Farnel, can be found in the THR-1. Not only does the components guaranteed the longevity of the products, but also guaranteed the sound quality consistency in long run. SOUND CHARACTERISTIC Neutral sound reproduction, with balance across all frequencies with little or no coloration was the characteristic of THR-1. The oversize EXICON MOSFET Output Transistors provide strong control, micro-dynamic, micro-contrast and excellent drives. This is especially so even on the hard-to-drive AKG K1000, THR-1 handles the music reproduction with K1000 exceptionally well. NEED A PREAMP ? No problem. The THR-1 can be doubled up as Pre-amp by a toggle switch located right beside the volume pot. In Preamp mode, the headphone output is bypassed, the volume of the Preamp output can be controlled by the volume pot as a passive preamp. Specification Parameters * Frequency Response: 20-300kHz (±1dB) * THDN: 0.0014% (80dB) * S/N Ratio: >98dB * Dynamic Range: >115dB Input * Input Sensitivity: 2.25Vrms - 3.6Vrms * Input Impedance: 50kΩ * Input Connector: RCA x 1, XLR x 1 Headphone Output * Output Voltage: ±70VAC * Output Connector: 6.3mm x 2, XLR 4Pin x 1 Preamp Output * Output Voltage: 2.25Vrms - 3.6Vrms * Output Connector: XLR x 1 Dimension & Weight * Dimensions (mm): 270W x 100H x 210D * Weight: 6KGFiler och media
