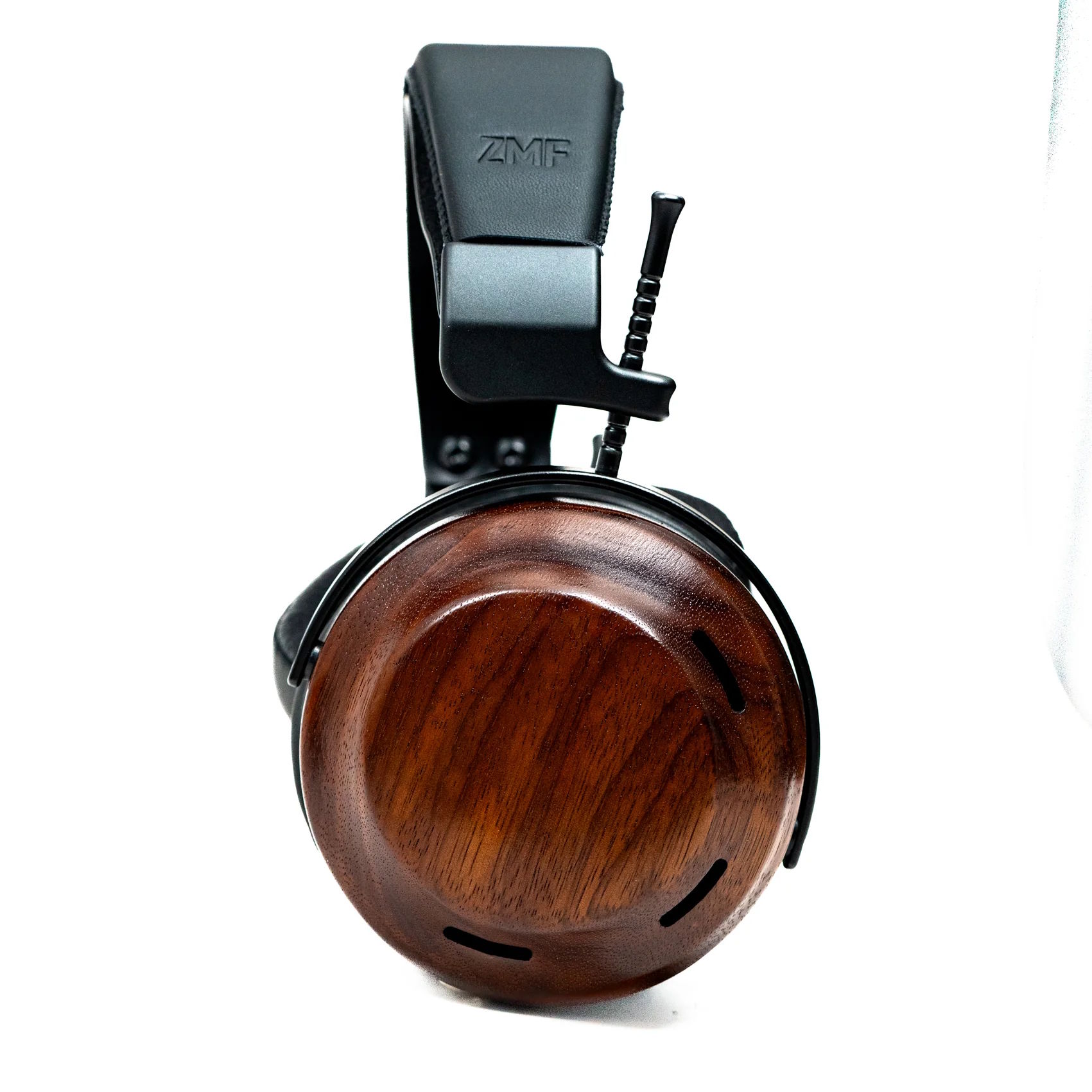

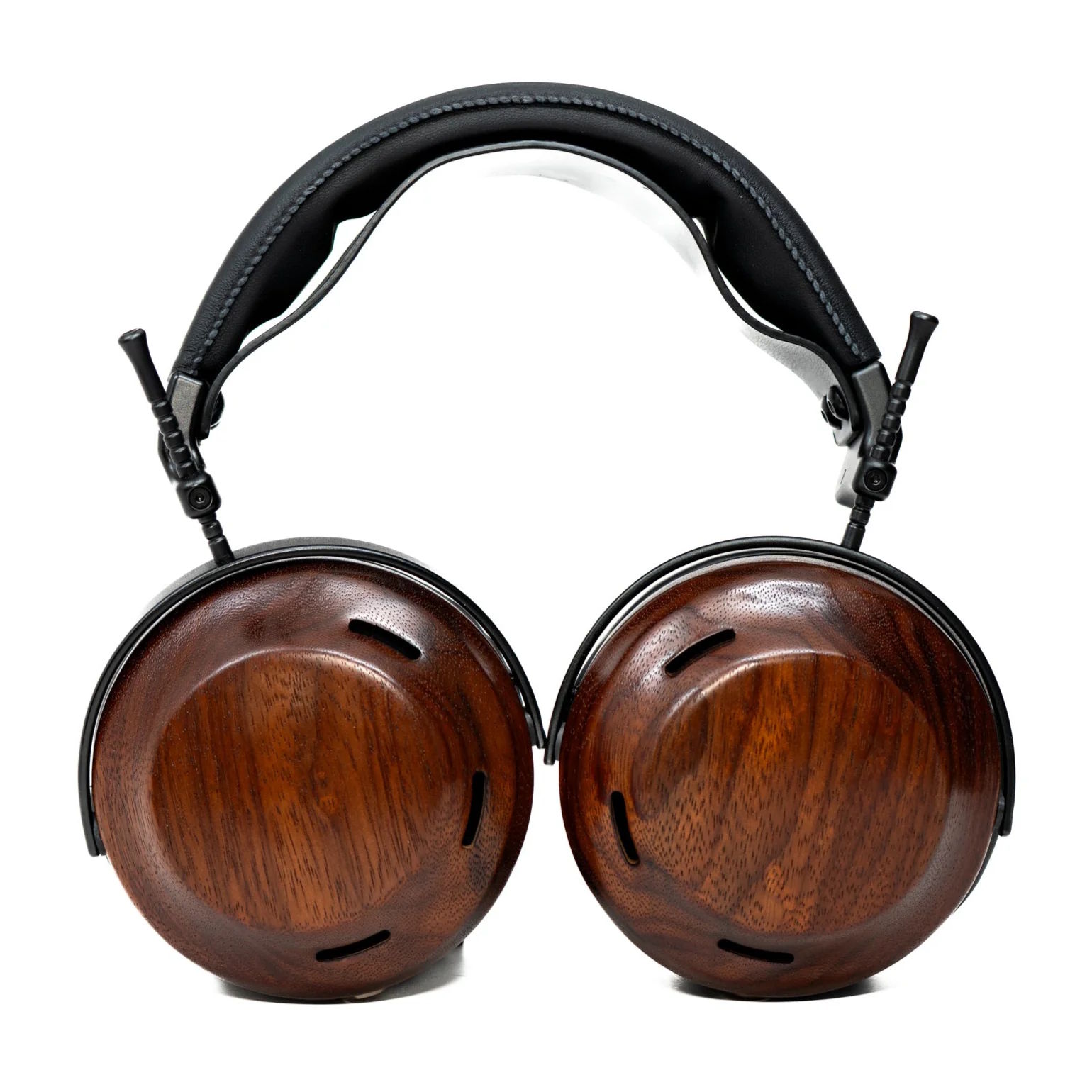

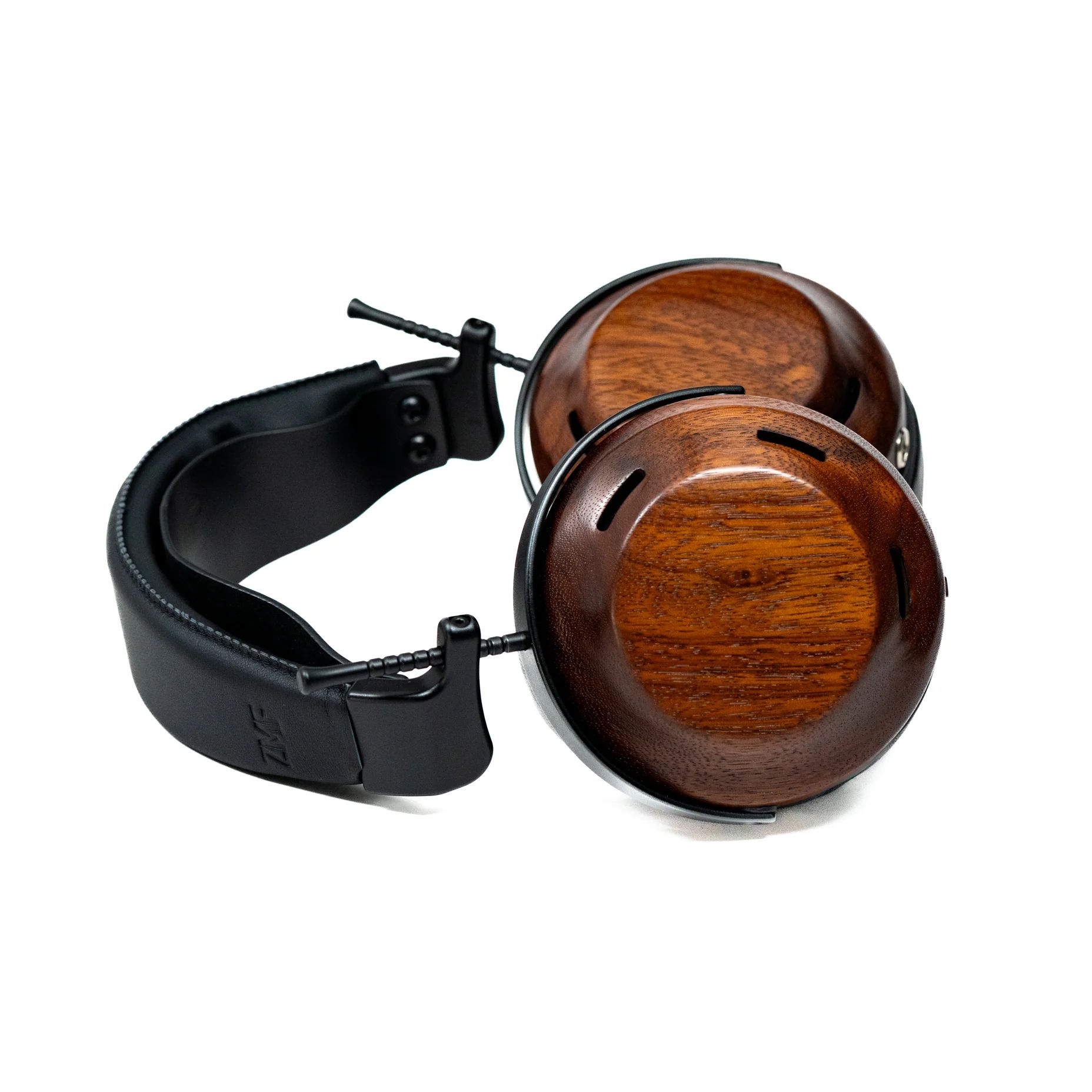

ZMF Ori 3.0 - Torrefied Black Limba
Because nothing ever really ends at ZMF—some stories just get better wood, bigger drivers, and way more slam.
In 2015 I took a humble Fostex T50RP Mk II, carved out its soul, and christened the result the Omni. As a C&D loomed, Head-Fi voted on a new name, Omni turned into Ori, and the rest is forum folklore. Ten years (and lots of coffee and sawdust) later, I’ve refactored that original idea with everything we’ve learned from Caldera, Atrium and the rest of the ZMF lineage.
Meet Ori 3.0—a closed‑back planar that marries the macrodynamic wallop of the first Ori with modern ZMF tech: CAMS magnets, ADS damping, Caldera pads and a lightweight, kiln‑roasted/torrefied Black Limba cup that looks as lively as it sounds.
SONIC SIGNATURE
Ori 3.0 hits like the original but scales like a modern planar: thunderous sub‑bass, liquid midrange, and an airy, effortless treble. Swap pads or experiment with the two sets of ported/solid tuning pegs and you’ve got wide range of tuning possibilities—from vintage warmth to neutral‑plus zest—all without touching an EQ.
WHAT’S NEW VS. THE ORIGINAL ORI
* Brand‑new 80 mm driver trickled down from Caldera with CAMS & ADS
* Torrefied Black Limba: ~20 % lighter yet stiffer than raw Limba
* Caldera pads standard for a wider stage and firmer seal
* Fully closed‑back design for studio‑class isolation

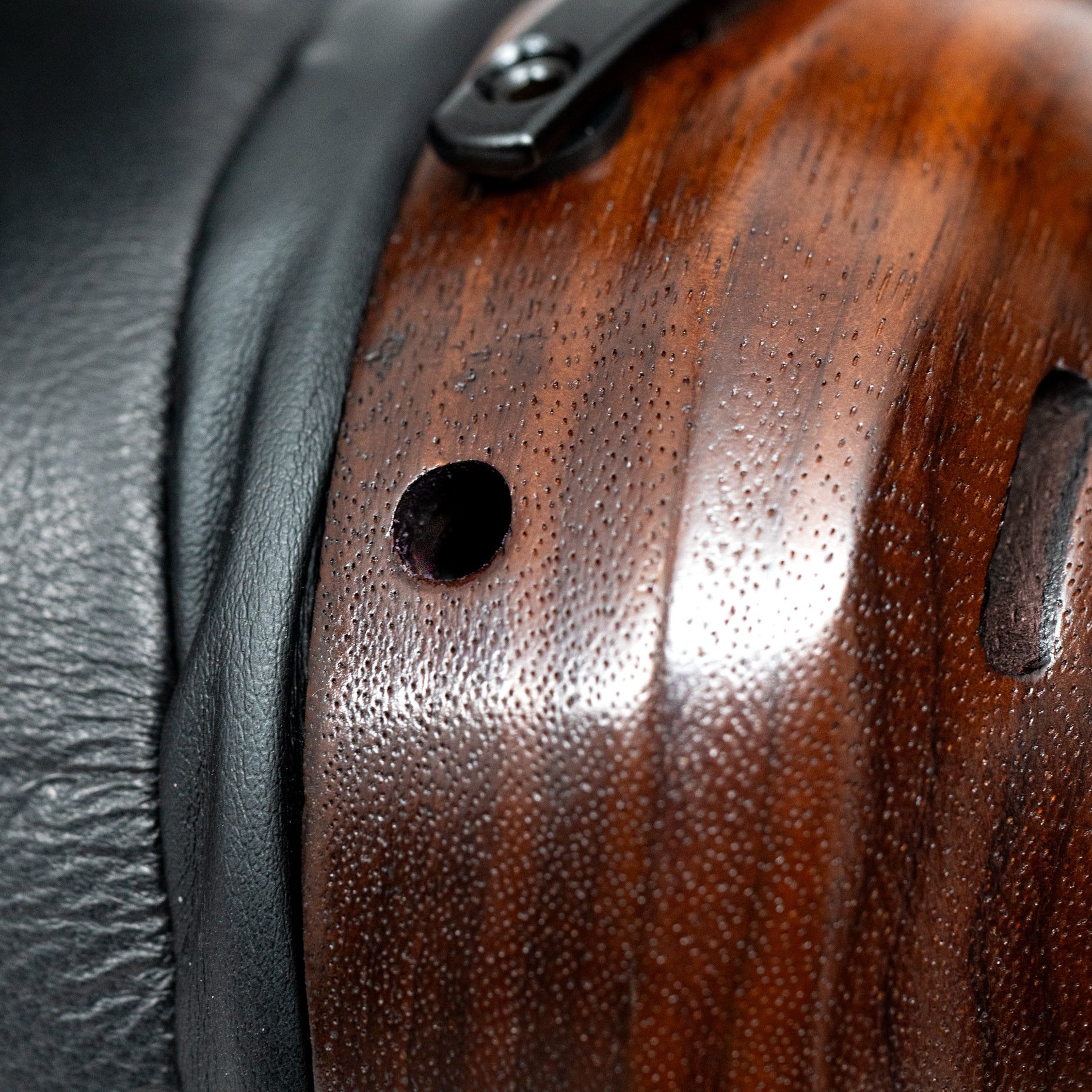

* Optimized cup airflow slots for lower distortion and cleaner transients
* Full Proprietary ZMF Build
Heads‑up: every Limba cup is a unique slice of nature; grain, chatoyance and hue will vary.
SPECIFICATIONS
* Cup Material: Torrefied Black Limba hardwood
* Form Factor: Closed‑back, circum‑aural
* Driver: 80 mm planar‑magnetic diaphragm, 6 µm Kapton® film
* Magnet System: CAMS – Caldera Asymmetrical Magnet Structure
* Damping: ADS – Atrium Damping System (rear‑wave tuning)
* Impedance: 60 Ω
* Sensitivity: 95 dB/mW
* Weight: 500 g ± 30 g (aluminum chassis)
INCLUDES
* Ori 3.0 headphone (Torrefied Black Limba)
* ZMF Clamshell Case (Black)
* ZMF Stock Braided Cable
* Caldera Lambskin Thick Top Perf Pads OR Caldera Suede Top Perf

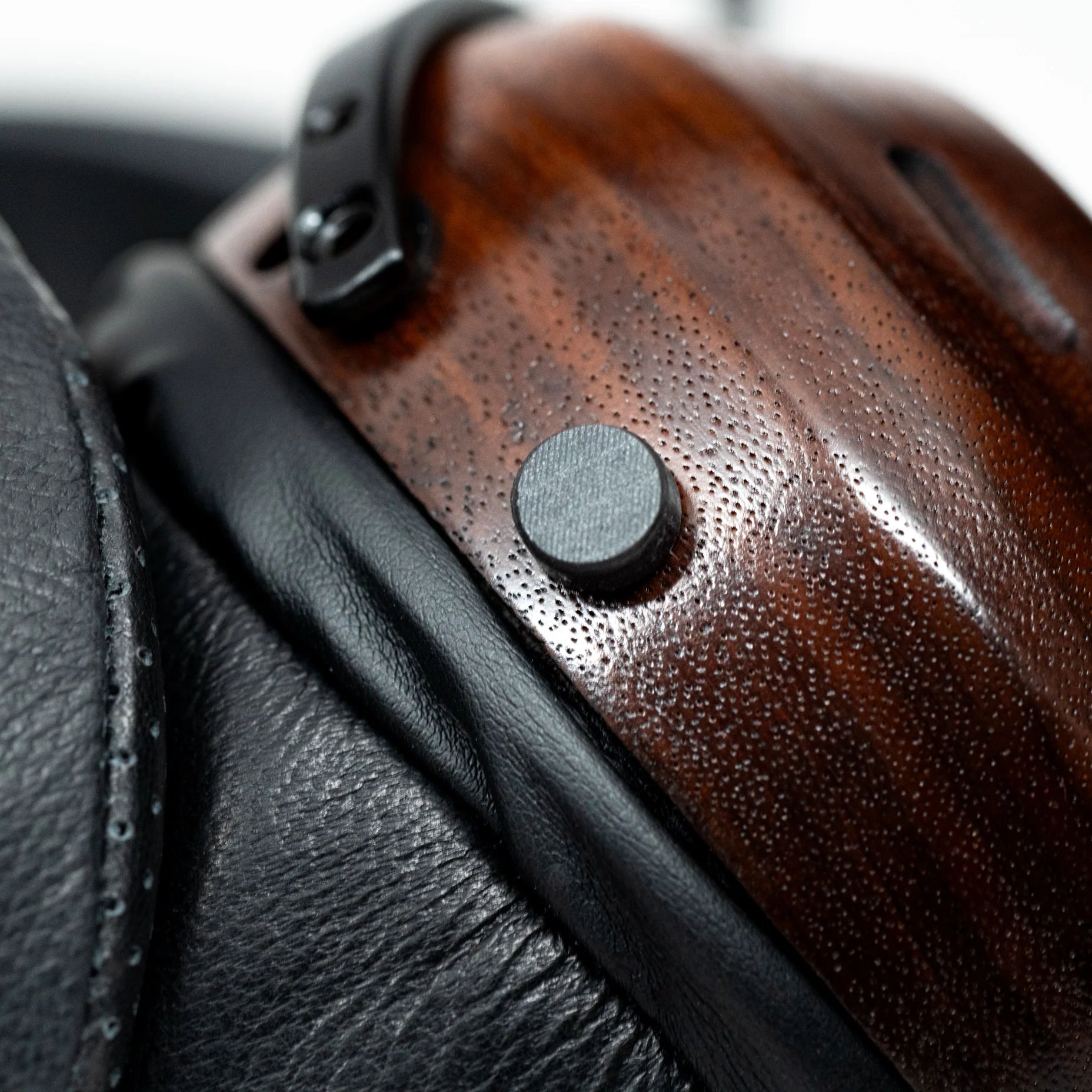

* Tuning Peg Kit (2 sets each; solid & ported)
* ZMF Owner's Card
* ZMF Labeled Box
* Lifetime Driver Warranty
