GUSTARD H26 Preamplifier Headphone Amp
GUSTARD H26 Preamplifier Headphone Amp

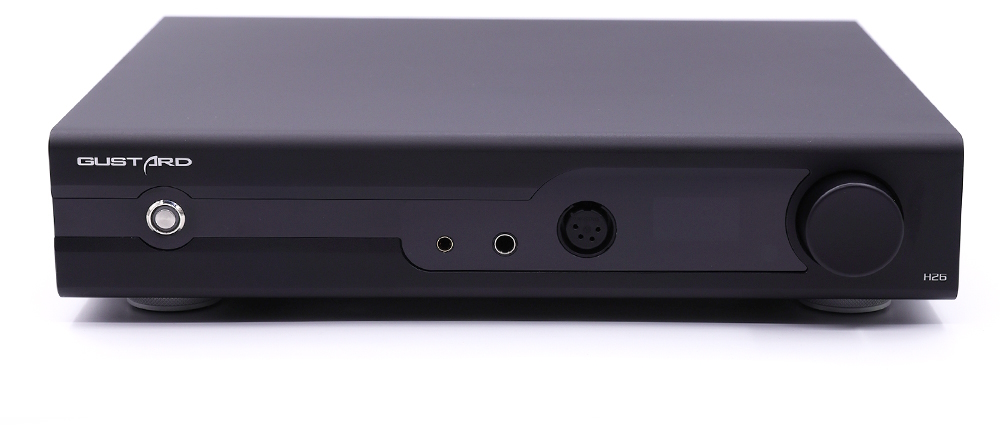

GUSTARD H26 Preamplifier Headphone Amp - 2

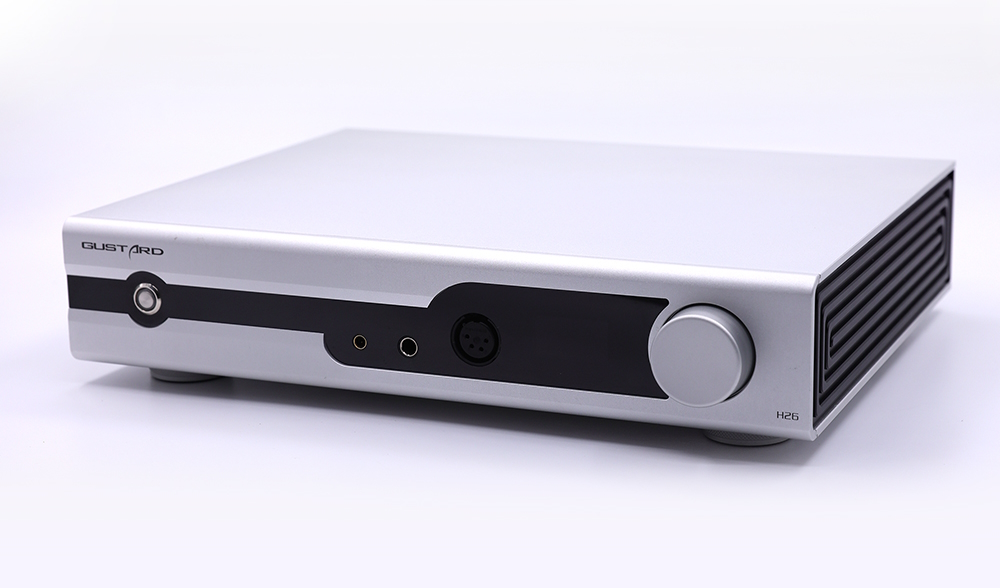

GUSTARD H26 Preamplifier Headphone Amp - 3
Gustard Audio

GUSTARD H26 Preamplifier Headphone Amp

13,490 SEK
Add to list of favorites

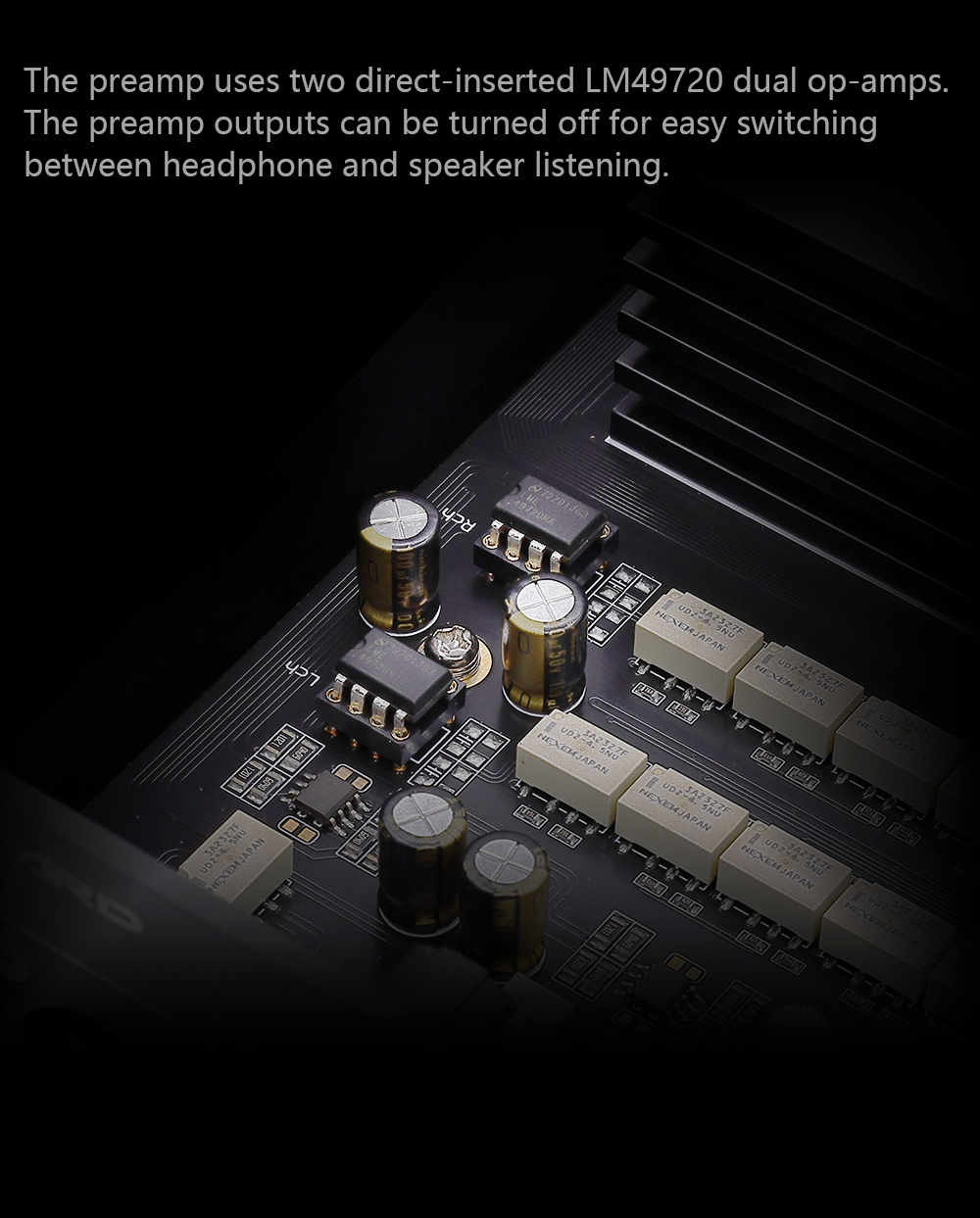

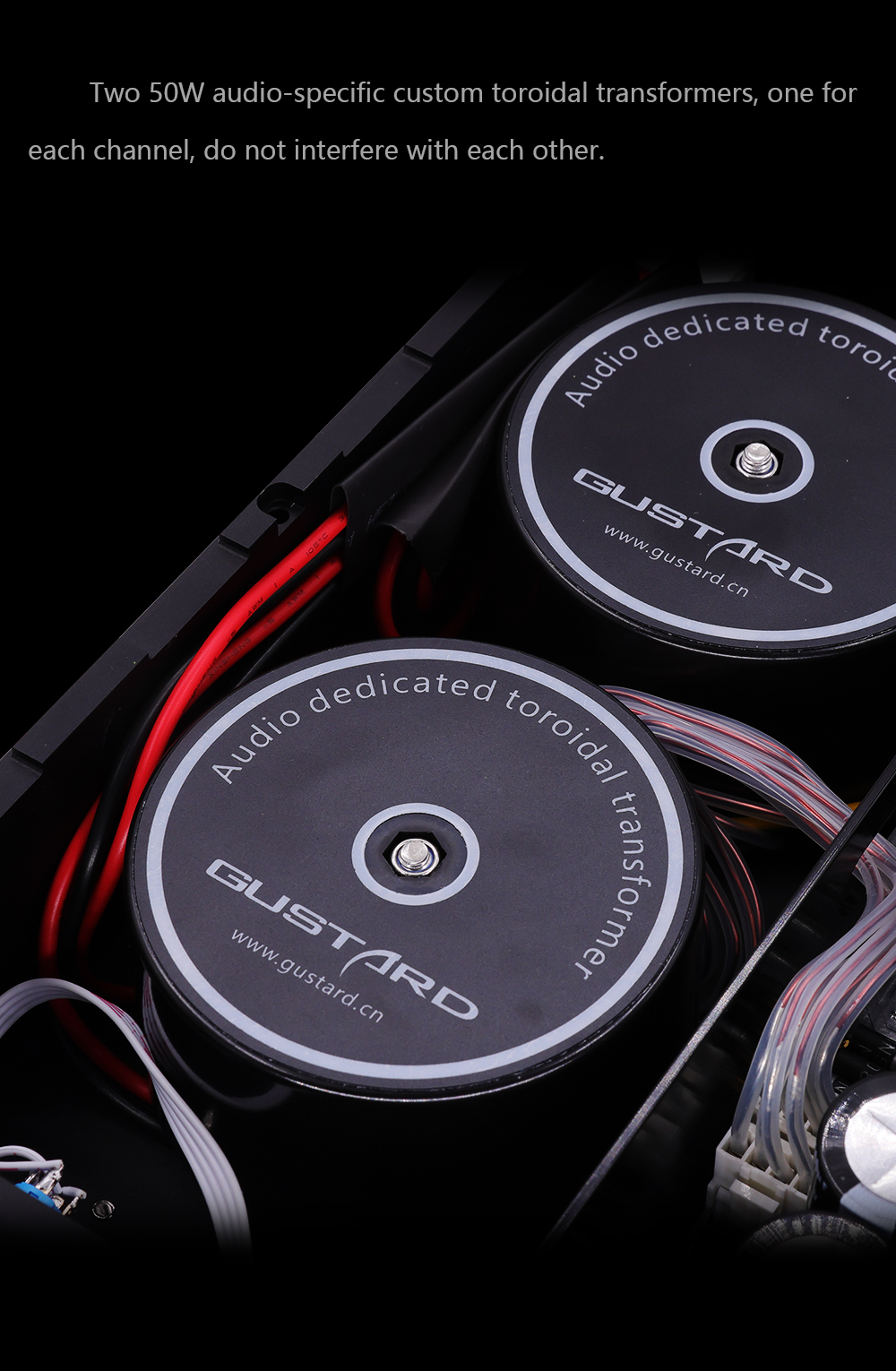

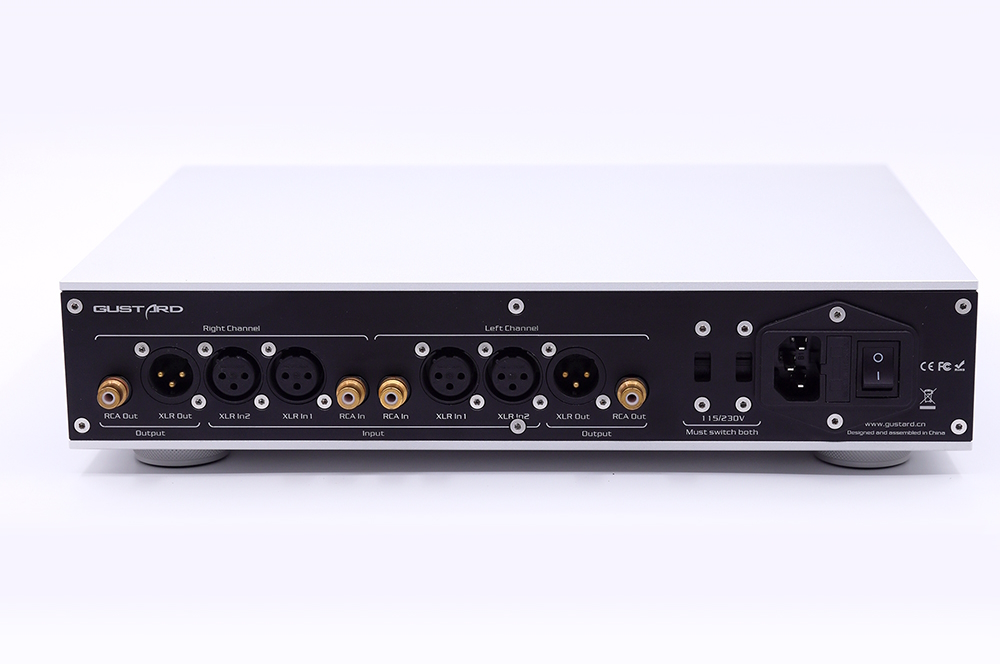

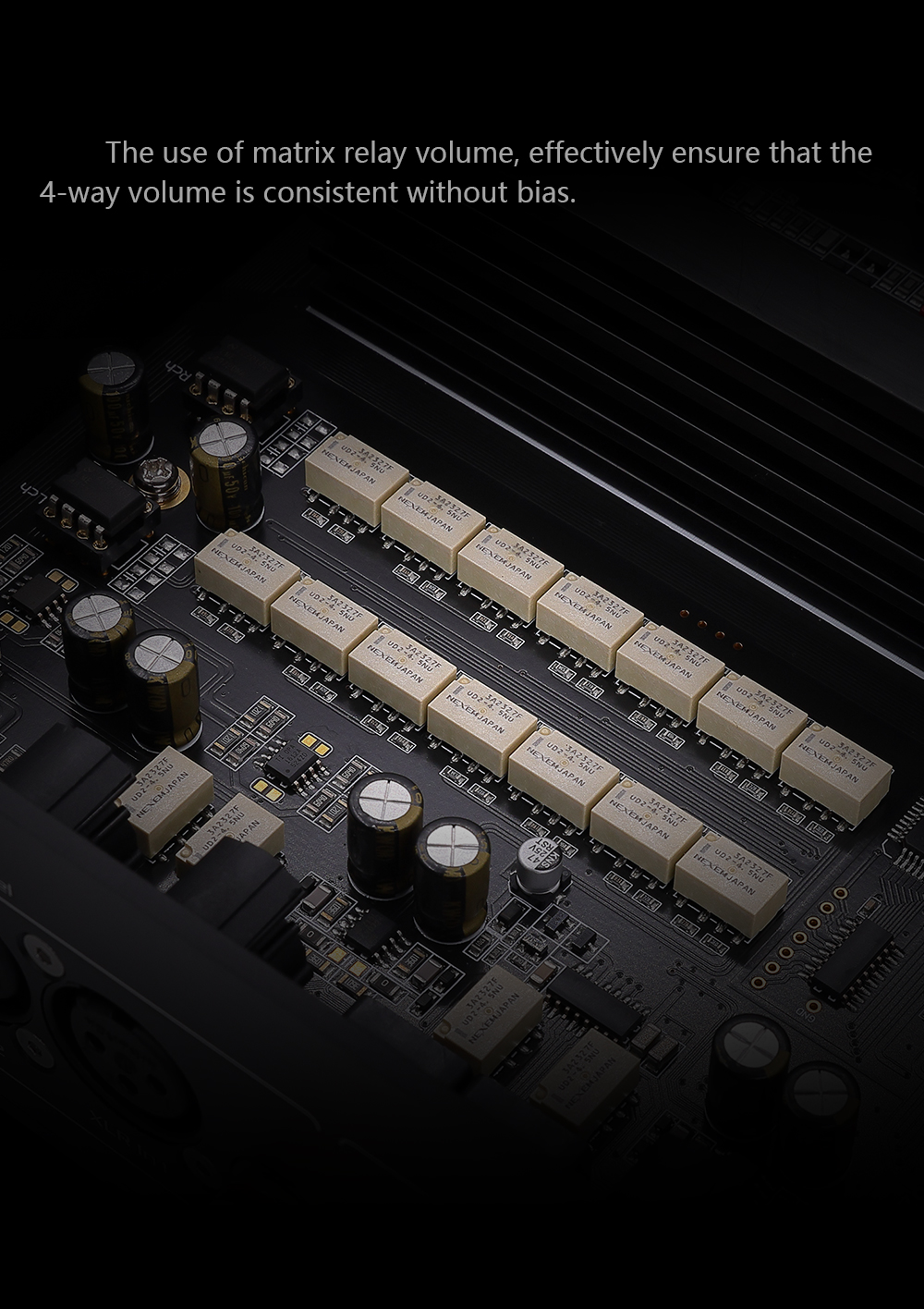

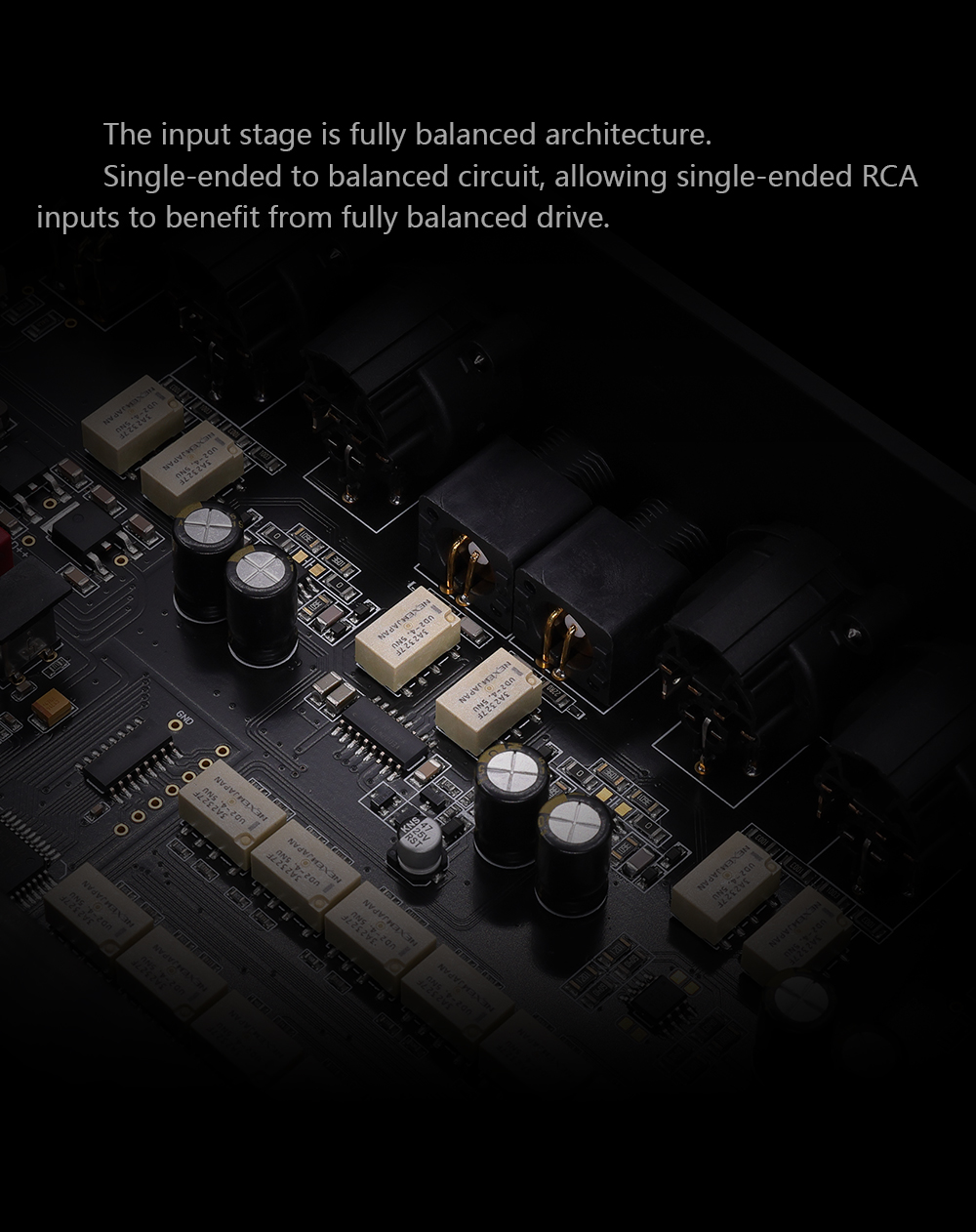

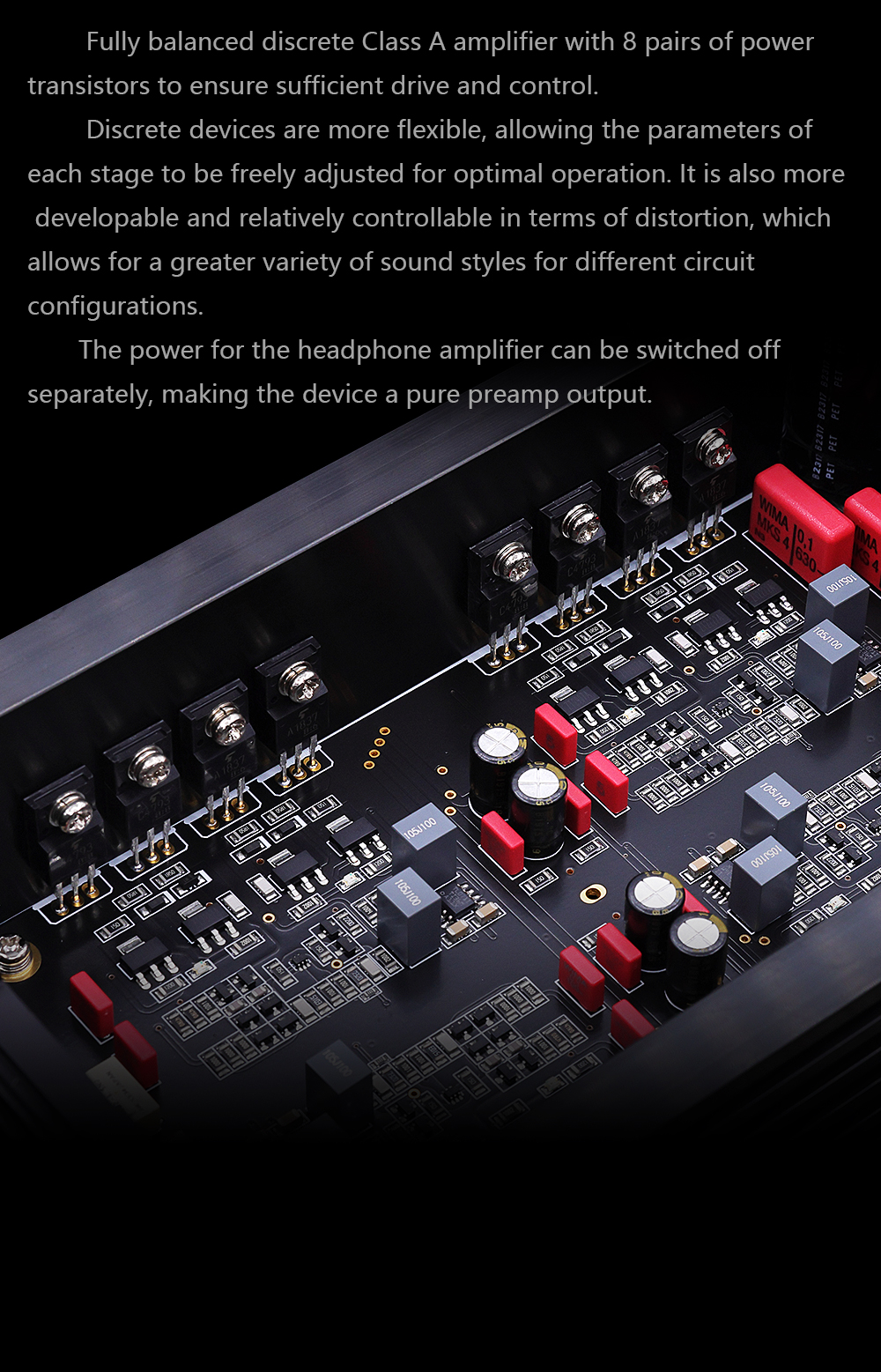

*********** AVAILABLE FOR DEMO ********* The Gustard H26 is a Class A balanced audiophile preamplifier/headphone amplifier with discrete components. It contains 8 pairs of power transistors, a relay volume control matrix, two dual LME49720 AOPs (interchangeable), two toroidal transformers, based on a balanced architecture. Aesthetically, it is very similar to the other products in the Gustard "26" series - with beautiful curves and solid materials. H26 in brief * Completely balanced architecture * Ultra low output impedance * Delivers plenty of output power to power even the slowest powered headphones * Output power - 7350mW@64Ω, 3125mW@150Ω, 1576mW@300Ω, 788mW@600Ω * Inputs - 1x RCA stereo and 2x XLR balanced * Outputs - Headphone: 4-pin XLR (balanced), 4.4mm (balanced), 6.35mm, Preamplifier: 1x Stereo RCA , 1x XLR stereo balanced The package includes: * 1x Gustard H26 * 1x remote control * 1x power cable Please read more about this on this user forum - HeadFi Gustard H26 . "The Gustard H26 surprised me in a very nice kind of way. This solidly built headphone amplifier offers a pleasingly smooth and refined tonal quality with a strong focus on spatial detail, all delivered within a very spacious presentation. It is hard to believe that this type of performance and feature excellence can be found at this price point in 2024. Everything just keeps getting more and more expensive these days. Sure, we have cheaper highly neutral headphone amplifiers from the likes of Topping and SMSL for maybe half or even less but none of them sound this ‘regal’ if I may call it that. None of them gel so wonderfully well with such a wide range of headphones." Headfonics (Jul 2024)
Read more...
  • Secure payment by card through Klarna (outside of Sweden we use PayPal)
  • E-mail us, we reply as swiftly as we can!

Description

Article no.: GUSTARDH26

GUSTARD H26 Preamplifier Headphone Amplifier Balanced

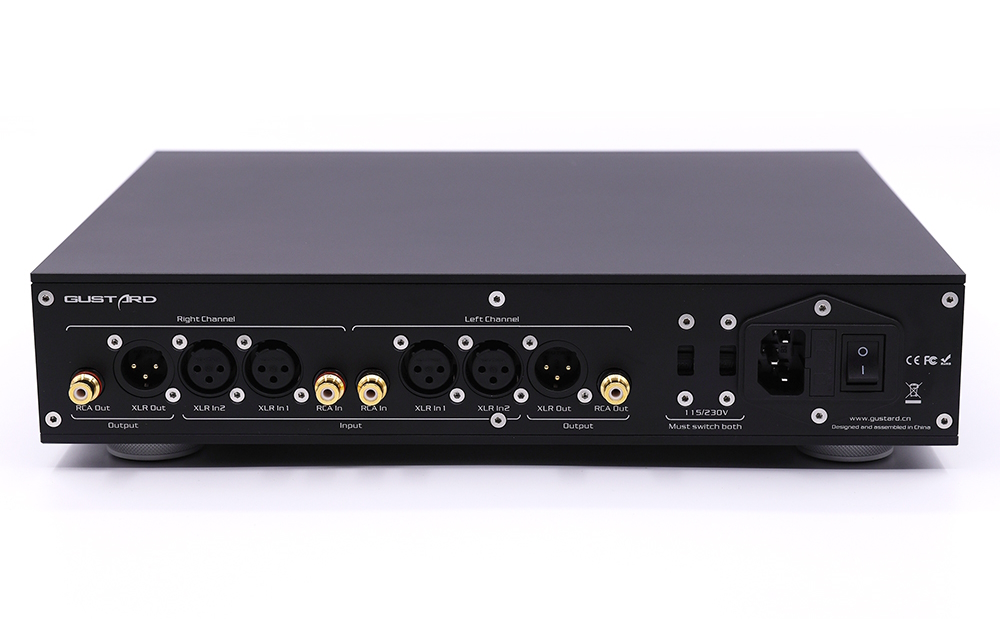

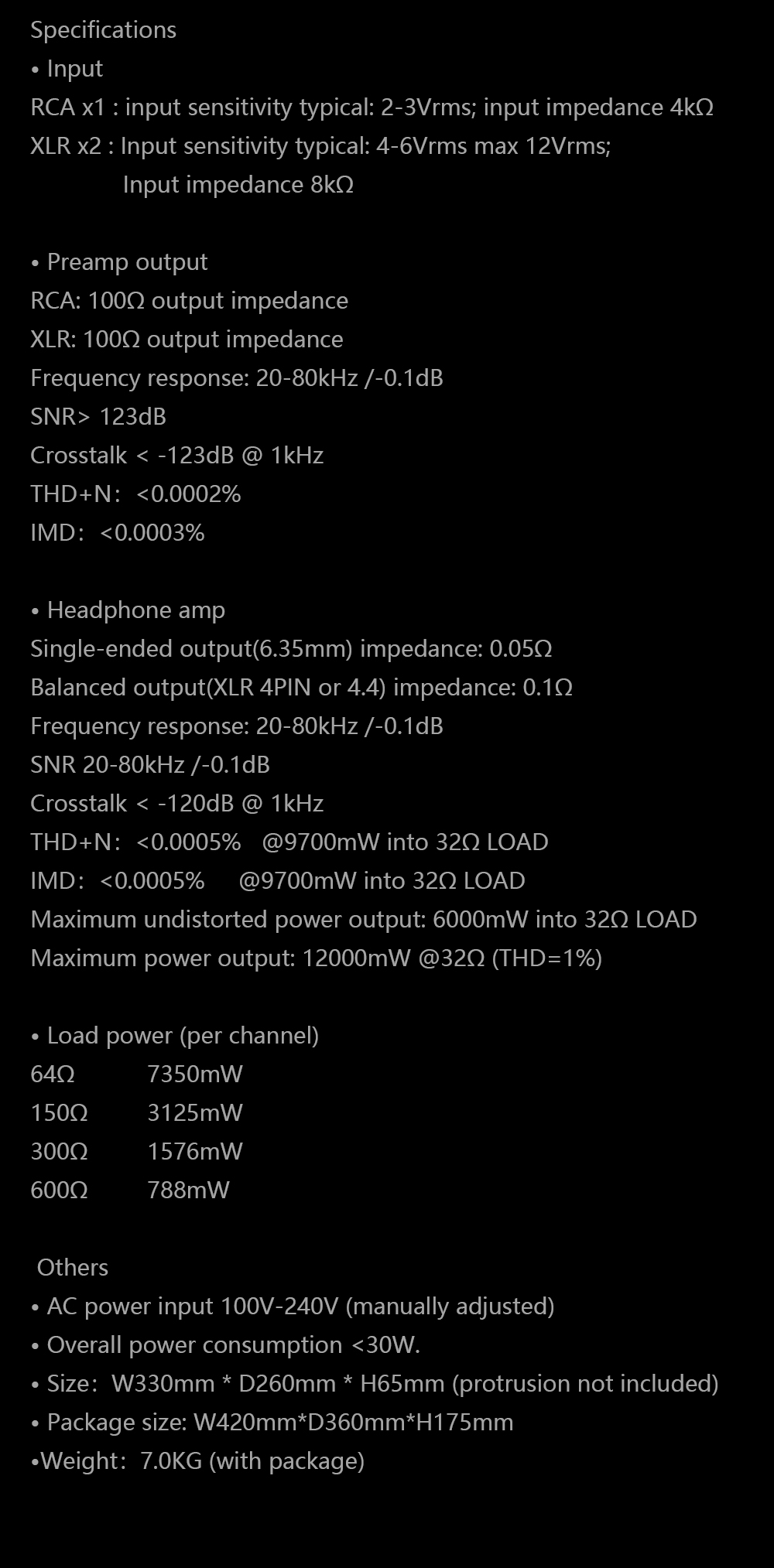

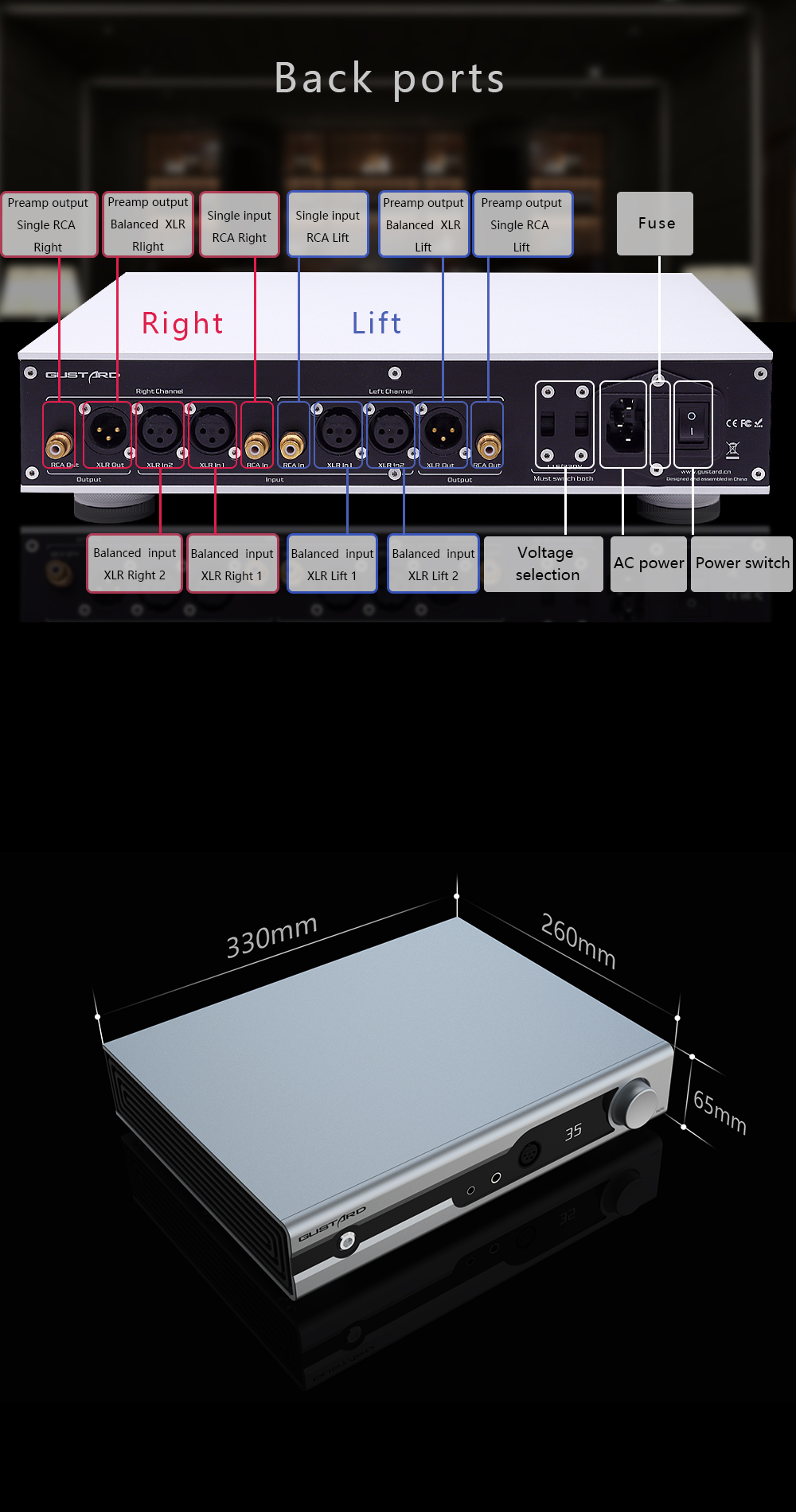

Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 Gustard  H26 SPECIFICATIONS * Product type: Headphone amplifier, Preamplifier * Inputs: 1x Single-ended RCA, 2x Balanced XLR * Input sensitivity - RCA : 2-3Vrms - XLR : 4-6Vrms, max. 12Vrms * Input impedance - RCA : 4 KΩ - XLR : 8 KΩ * Input sensitivity - Single-ended RCA : 2Vrms - Balanced XLR : +18dBu (Max +26dBu) * Input impedance - Single-ended RCA : 4.7kΩ - Balanced XLR : 10kΩ * Outputs - 1x Stereo RCA output (Pre-Out) - 1x XLR stereo balanced output (Pre-Out) - 1x 6.35mm headphone output - 1x Balanced headphone output 4.4mm jack - 1x XLR 4-pin balanced headphone output PREAMPLIFIER SECTION MEASUREMENTS * Output impedance - RCA : 100Ω - XLR : 100Ω * Frequency response 20-80kHz / -0.1dB * SNR > 123dB * Crosstalk < -123db 1khz * THD+N < 0.0002% * IMD < 0.0003% HEADPHONE AMPLIFIER SECTION MEASUREMENTS * Frequency response: 20Hz - 80kHz (-0.1dB) * SNR 20-80kHz / -0.1dB * Crosstalk < -120db 1khz * THD+N < 0.0005% @ 9700mW 32Ω load * IMD < 0.0005% @ 9700mW 32Ω load * Headphone outputs impedance - Single-ended Jack 6.35mm : 0.05Ω - Balanced outputs : 0.1Ω * Headphone output power - Max. undistorted output power 6000mW @32ohm load - Max. output power 12000mW @32ohm load (THD=1%) * Load power (per channel) - 64Ω 7350mW - 150Ω 3125mW - 300Ω 1576mW - 600Ω 788mW GENERAL * Power supply 100-240V AC (Selector on rear panel) * Power consumption < 30W * Dimensions 330x 260 x 65mm * Gross weight 7Kg * Colors: Black and Silver GENERAL Gross weight 7Kg In the package * 1x Gustard H26 preamplifier/headphone amplifier * 1x Power supply cable * 1x Remote control

Files and media

Headfonics (Jul 2024)
